SF87R57DVE90L4Detailed Information
Keywords: 75 kw for an electric slasher _ sf87r57dve90l4_sf87r57drn63ms4
SF87R57DVE90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DVE90L4 | 485 | 1.5KW | 3.00r/min | 3050N.m | 141kg | 17700N | 0.80 |
| SF87R57DVE90L4 | 435 | 1.5KW | 3.30r/min | 2770N.m | 141kg | 26100N | 0.90 |
| SF87R57DVE90L4 | 378 | 1.5KW | 3.80r/min | 2440N.m | 141kg | 27600N | 1.00 |
| SF87R57DVE90L4 | 323 | 1.5KW | 4.40r/min | 2120N.m | 141kg | 28200N | 1.15 |
| SF87R57DVE90L4 | 281 | 1.5KW | 5.10r/min | 1860N.m | 141kg | 28700N | 1.30 |
| SF87R57DVE90L4 | 255 | 1.5KW | 5.60r/min | 1990N.m | 141kg | 28400N | 1.00 |
| SF87R57DVE90L4 | 222 | 1.5KW | 6.40r/min | 1740N.m | 141kg | 28800N | 1.15 |
| SF87R57DVE90L4 | 205 | 1.5KW | 7.00r/min | 1620N.m | 141kg | 29000N | 1.20 |
SF87R57DRN63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRN63MS4 | 6706 | 0.12KW | 0.21r/min | 2690N.m | 123.5kg | 27100N | 0.95 |
| SF87R57DRN63MS4 | 5875 | 0.12KW | 0.23r/min | 2400N.m | 123.5kg | 27700N | 1.05 |
| SF87R57DRN63MS4 | 5187 | 0.12KW | 0.27r/min | 1980N.m | 123.5kg | 28500N | 1.25 |
| SF87R57DRN63MS4 | 4606 | 0.12KW | 0.30r/min | 1760N.m | 123.5kg | 28800N | 1.40 |
| SF87R57DRN63MS4 | 3872 | 0.12KW | 0.36r/min | 1460N.m | 123.5kg | 29200N | 1.70 |
Sf87r57dve90l4 motor deceleratorType:
S87r57dve90l4 foot installation - slash gearServo motor reducer
Sa87r57dve90l4 sky axis installation -- snail snail brakes
Saf87r57dve90l4 is areducing machine for b5 installation snails
Saz87r57dve90l4 is a b14 flannel axle installation - a snail brake
Sf87r57dve90l4 is thereducing machine for the b5 solid core
Sh87r57dve90l4 is an empty axle locker installation - a snail-slasher
Shf87r57dve90l4 is a b5 franium axle locker installation - a snail snail brake
Shz87r57dve90l4 is a b14 flannel axle lockboard installation - a sledge snail brake
Sa87/tr57dve90l4 rotation arm hollow axis installation -- scalding snails
Sh87/tr57dve90l4 is an axle lock lock installation for a sledge snail
Sa87br57dve90l4 bottom foot hollow axis installation - snail snail brakes
Sh87br57dve90l4 bottom foot hollow axle lock-board installation -- snail brakes snail
St87r57dve90l4 solid axle output twirl arm installation — snail snail brake

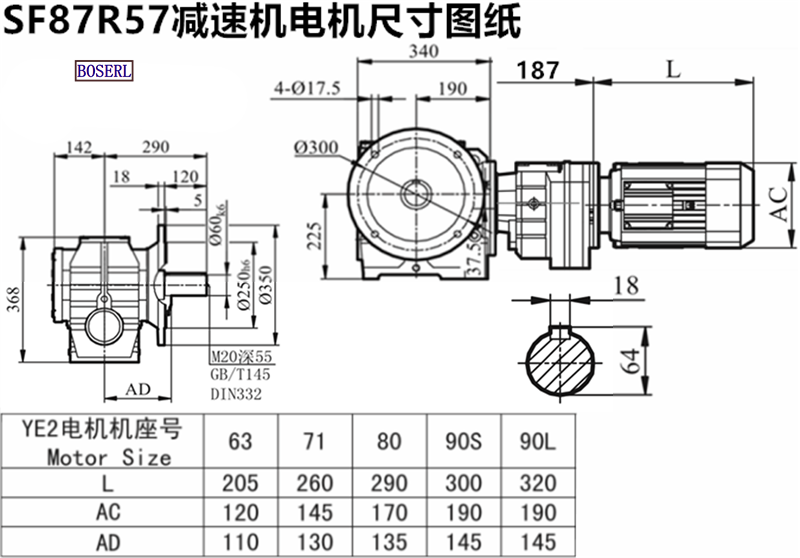

Sf87r57dve90l4 motor deceleratorInstall size drawings
Sf87r57dve90l4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
