SF97R57DM112M4Detailed Information
Keyword: 0. 15 kw server gear-retarder_sf97r57dm112m4_sf97r57drrs63m4
SF97R57DM112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97R57DM112M4 | 219 | 4KW | 6.70r/min | 4690N.m | 234kg | 24100N | 0.90 |
| SF97R57DM112M4 | 205 | 4KW | 7.10r/min | 4410N.m | 234kg | 28500N | 0.95 |
SF97R57DRS63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97R57DRS63M4 | 11267 | 0.12KW | 0.12r/min | 4740N.m | 193.5kg | 25100N | 0.90 |
| SF97R57DRS63M4 | 10078 | 0.12KW | 0.14r/min | 4330N.m | 193.5kg | 32500N | 0.95 |
| SF97R57DRS63M4 | 8608 | 0.12KW | 0.16r/min | 3590N.m | 193.5kg | 34000N | 1.15 |
| SF97R57DRS63M4 | 7554 | 0.12KW | 0.18r/min | 3180N.m | 193.5kg | 34700N | 1.30 |
Sf97r57dm112m4 motor deceleratorType:
S97r57dm112m4 foot installation - slash gearServo motor reducer
Sa97r57dm112m4 sky axe installation - tilt snail snail deviator
Saf97r57dm112m4 is a b5 installation-slash snail snail
Saz97r57dm112m4 is thereducing machine for the b14 aerocentric axle snail
Sf97r57dm112m4 is a frenzy b5 axle installation - a snail brake
Sh97r57dm112m4 is an empty axle lock-drive installation - a snail-slasher
Shf97r57dm112m4 is a b5 franium axle locker installation - a snail braker
Shz97r57dm112m4 is a b14 franium axle locker installation - a snail braker
Sa97/tr57dm112m4 rotation arm hollow axis installation - scalding snails
Sh97/tr57dm112m4 is an axle lock lock installation for a sledge snail
Sa97br57dm112m4 foot hollow axle installation -- snail snail brake
Sh97br57dm112m4 foot hollow axle lock-drive installation -- snail brakes for slush gear
St97r57dm112m4 solid axis output twirl arm installation -- snail-slash snail brake

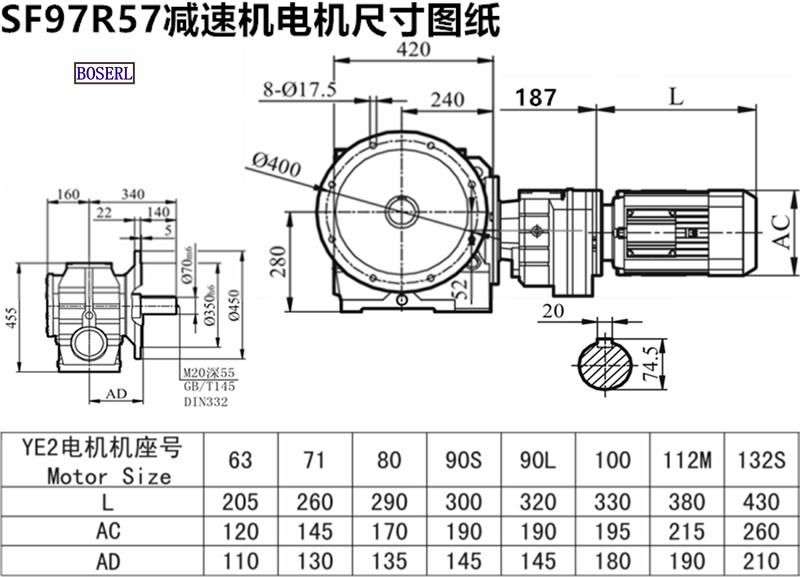

Sf97r57dm112m4 motor deceleratorInstall size drawings
Sf97r57dm112m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
