SF97R57DM63M4Detailed Information
Keywords: 45kw server slasherbox_sf97r57dm63m4_sf97r57drrs80m4
SF97R57DM63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97R57DM63M4 | 11267 | 0.12KW | 0.12r/min | 4740N.m | 193.5kg | 25100N | 0.90 |
| SF97R57DM63M4 | 10078 | 0.12KW | 0.14r/min | 4330N.m | 193.5kg | 32500N | 0.95 |
| SF97R57DM63M4 | 8608 | 0.12KW | 0.16r/min | 3590N.m | 193.5kg | 34000N | 1.15 |
| SF97R57DM63M4 | 7554 | 0.12KW | 0.18r/min | 3180N.m | 193.5kg | 34700N | 1.30 |
SF97R57DRS80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97R57DRS80M4 | 1223 | 0.75KW | 1.20r/min | 4710N.m | 204kg | 23400N | 0.90 |
| SF97R57DRS80M4 | 1070 | 0.75KW | 1.30r/min | 4130N.m | 204kg | 32200N | 1.00 |
| SF97R57DRS80M4 | 928 | 0.75KW | 1.60r/min | 3550N.m | 204kg | 34000N | 1.20 |
| SF97R57DRS80M4 | 824 | 0.75KW | 1.70r/min | 3140N.m | 204kg | 34700N | 1.35 |
| SF97R57DRS80M4 | 714 | 0.75KW | 2.00r/min | 2240N.m | 204kg | 35900N | 1.85 |
| SF97R57DRS80M4 | 626 | 0.75KW | 2.30r/min | 2380N.m | 204kg | 35800N | 1.75 |
| SF97R57DRS80M4 | 538 | 0.75KW | 2.70r/min | 2040N.m | 204kg | 36100N | 2.00 |
| SF97R57DRS80M4 | 484 | 0.75KW | 3.00r/min | 1850N.m | 204kg | 36300N | 2.30 |
Sf97r57dm63m4 electric retrenchorType:
S97r57dm63m4 foot installation - slash gearServo motor reducer
Sa97r57dm63m4 sky axe installation - tilt snail strangler
Saf97r57dm63m4 is a flange b5 installation - snail snail brake
Saz97r57dm63m4 is thereducing machine for the b14 aerocentric axle snail
Sf97r57dm63m4 is a ff5-sorted snail-drive-reducing machine
Sh97r57dm63m4 is an empty axle lock-board installation - a snail-slasher
Shf97r57dm63m4 is a flang axle lock-drive installation of b5-slashed snail snails
Shz97r57dm63m4 is a b14 franium axle locker installation - a snail snail brake
Sa97/tr57dm63m4 rotation arm hollow axis installation - scalding snails
Sh97/tr57dm63m4 is an axle lock-drive installation of a sledge snail
Sa97br57dm63m4 foot hollow axle installation -- snail snail brake
Sh97br57dm63m4 foot hollow axle locker installation -- snail brake
St97r57dm63m4 solid axis output twister arm installation -- slashed gear snail snail decelerator

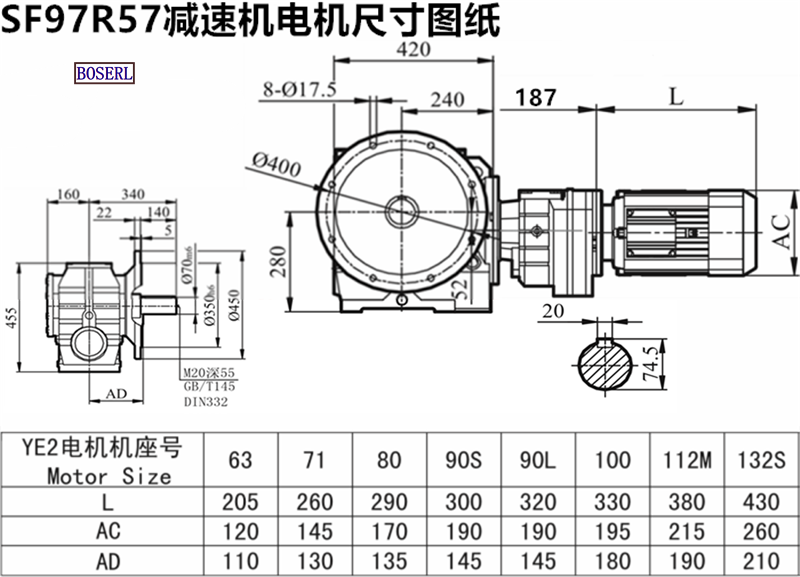

Sf97r57dm63m4 electric retrenchorInstall size drawings
Sf97r57dm63m4 electric retrenchorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
