SF97R57DV63M4Detailed Information
Keyword: 90kw server slasherbox_sf97r57dv63m4_sf97r57dre90m4
SF97R57DV63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97R57DV63M4 | 11267 | 0.12KW | 0.12r/min | 4740N.m | 193.5kg | 25100N | 0.90 |
| SF97R57DV63M4 | 10078 | 0.12KW | 0.14r/min | 4330N.m | 193.5kg | 32500N | 0.95 |
| SF97R57DV63M4 | 8608 | 0.12KW | 0.16r/min | 3590N.m | 193.5kg | 34000N | 1.15 |
| SF97R57DV63M4 | 7554 | 0.12KW | 0.18r/min | 3180N.m | 193.5kg | 34700N | 1.30 |
SF97R57DRE90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97R57DRE90M4 | 824 | 1.1KW | 1.70r/min | 4700N.m | 208kg | 23500N | 0.90 |
| SF97R57DRE90M4 | 714 | 1.1KW | 2.00r/min | 3360N.m | 208kg | 34400N | 1.25 |
| SF97R57DRE90M4 | 626 | 1.1KW | 2.30r/min | 3570N.m | 208kg | 34000N | 1.15 |
| SF97R57DRE90M4 | 538 | 1.1KW | 2.60r/min | 3070N.m | 208kg | 34800N | 1.35 |
| SF97R57DRE90M4 | 484 | 1.1KW | 2.90r/min | 2780N.m | 208kg | 35300N | 1.50 |
| SF97R57DRE90M4 | 420 | 1.1KW | 3.40r/min | 2410N.m | 208kg | 35700N | 1.75 |
Sf97r57dv63m4 motor deceleratorType:
S97r57dv63m4 foot installation - slash gearServo motor reducer
Sa97r57dv63m4 sky axe installation - tilted snail snail deviator
Saf97r57dv63m4 is thereducing machine for b5 installation snails
Saz97r57dv63m4 is thereducing machine for the b14 aerocentric axle snail
Sf97r57dv63m4 is thereducing machine for snail snails with a b5 solid core
Sh97r57dv63m4 is an empty axle locker installation - a snail brake
Shf97r57dv63m4 is a flang axle lock-drive installation of b5-slash snail brakes
Shz97r57dv63m4 is a b14 franium axle locker installation - a snail braker
Sa97/tr57dv63m4 rotation arm hollow axis installation -- scalding snails
Sh97/tr57dv63m4 is an axle lock lock installation for a sledge snail
Sa97br57dv63m4 foot hollow axis installation -- snail snail brakes
Sh97br57dv63m4 foot hollow axle lock-drive installation -- snail snail brake
St97r57dv63m4 solid axis export twirl arm installation - tilt snail snail deviator

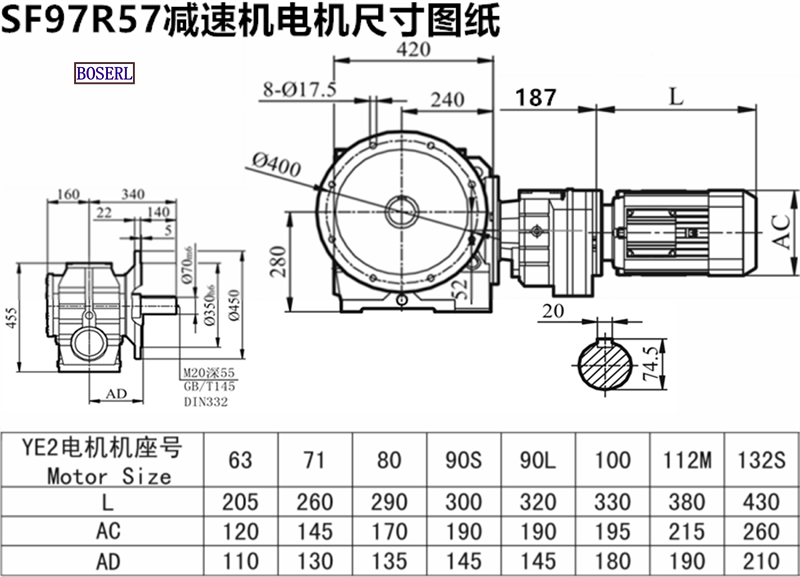

Sf97r57dv63m4 motor deceleratorInstall size drawings
Sf97r57dv63m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: 90kw for an electric slasher gear reduction box sf97r57dv63m4 sf97r57dre90m4
- 上一条SF97R57DV80M4
- 下一条SF97RF57-Y4KW
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SF97R57DV63M4减速机样本 |
|
| SF97R57DV63M4减速机三维图纸 |
|
