SF97RF57-Y0.75KWDetailed Information
Keywords: 160kw server slasherbox_sf97rf57-y0. 75kw_sf97rf57-y0. 12kw
SF97RF57-Y0.75KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97RF57-Y0.75KW | 1223 | 0.75KW | 1.20r/min | 4710N.m | 204kg | 23400N | 0.90 |
| SF97RF57-Y0.75KW | 1070 | 0.75KW | 1.30r/min | 4130N.m | 204kg | 32200N | 1.00 |
| SF97RF57-Y0.75KW | 928 | 0.75KW | 1.60r/min | 3550N.m | 204kg | 34000N | 1.20 |
| SF97RF57-Y0.75KW | 824 | 0.75KW | 1.70r/min | 3140N.m | 204kg | 34700N | 1.35 |
| SF97RF57-Y0.75KW | 714 | 0.75KW | 2.00r/min | 2240N.m | 204kg | 35900N | 1.85 |
| SF97RF57-Y0.75KW | 626 | 0.75KW | 2.30r/min | 2380N.m | 204kg | 35800N | 1.75 |
| SF97RF57-Y0.75KW | 538 | 0.75KW | 2.70r/min | 2040N.m | 204kg | 36100N | 2.00 |
| SF97RF57-Y0.75KW | 484 | 0.75KW | 3.00r/min | 1850N.m | 204kg | 36300N | 2.30 |
SF97RF57-Y0.12KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97RF57-Y0.12KW | 11267 | 0.12KW | 0.12r/min | 4740N.m | 193.5kg | 25100N | 0.90 |
| SF97RF57-Y0.12KW | 10078 | 0.12KW | 0.14r/min | 4330N.m | 193.5kg | 32500N | 0.95 |
| SF97RF57-Y0.12KW | 8608 | 0.12KW | 0.16r/min | 3590N.m | 193.5kg | 34000N | 1.15 |
| SF97RF57-Y0.12KW | 7554 | 0.12KW | 0.18r/min | 3180N.m | 193.5kg | 34700N | 1.30 |
Sf97rf57-y0. 75kw motor deceleratorType:
S97rf57-y0. 75 kw foot installation - slash gearServo motor reducer
Sa97rf57-y0. 75kw hollow axle installation -- snail snail brake machine
Saf97rf57-y0. 75kw is thereducing machine for b5 installation snail snails
Saz97rf57-y0. 75kw is thereducing machine for the b14 aerocentric axle snails
Sf97rf57-y0. 75kw is thereducing machine for snail snails with a b5 solid core
Sh97rf57-y0. 75kw is an empty axle lock-board installation - a snail brake
Shf97rf57-y0. 75kw is a b5 franium axle lockboard installation - a snail snail brake
Shz97rf57-y0. 75kw is a b14 flannel axle locker installation - a sledge snail brake
Sa97/trf57-y0. 75kw rotation arm hollow axis installation -- scalding snail brakes
Sh97/trf57-y0. 75kw is an axle locker installation for a slasher snail snail
Sa97brf57-y0. 75 kw foot hollow axis installation -- snail snail brakes
Sh97brf57-y0. 75 kw bottom foot hollow axle locker installation -- snail snail brake
St97rf57-y0. 75kw solid axe output twister arm installation -- snail brakes snail

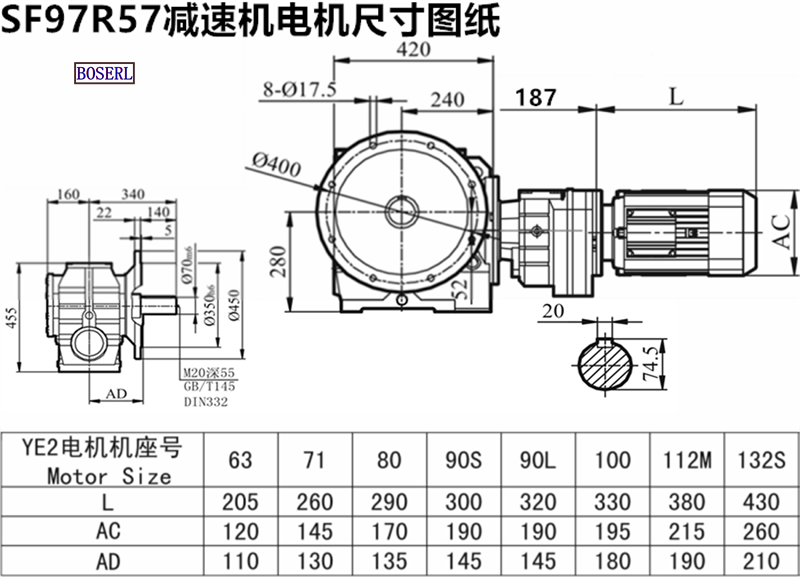

Sf97rf57-y0. 75kw motor deceleratorInstall size drawings
Sf97rf57-y0. 75kw motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
