SF97RF57-Y3KWDetailed Information
Keywords: 75kw server slasherbox_sf97rf57-y3kw_sf97rf57-y90m4
SF97RF57-Y3KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97RF57-Y3KW | 287 | 3KW | 5.10r/min | 4580N.m | 223kg | 25700N | 0.90 |
| SF97RF57-Y3KW | 252 | 3KW | 5.80r/min | 4020N.m | 223kg | 33100N | 1.05 |
| SF97RF57-Y3KW | 219 | 3KW | 6.60r/min | 3510N.m | 223kg | 34100N | 1.20 |
| SF97RF57-Y3KW | 205 | 3KW | 7.10r/min | 3300N.m | 223kg | 34500N | 1.25 |
SF97RF57-Y90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97RF57-Y90M4 | 824 | 1.1KW | 1.70r/min | 4700N.m | 208kg | 23500N | 0.90 |
| SF97RF57-Y90M4 | 714 | 1.1KW | 2.00r/min | 3360N.m | 208kg | 34400N | 1.25 |
| SF97RF57-Y90M4 | 626 | 1.1KW | 2.30r/min | 3570N.m | 208kg | 34000N | 1.15 |
| SF97RF57-Y90M4 | 538 | 1.1KW | 2.60r/min | 3070N.m | 208kg | 34800N | 1.35 |
| SF97RF57-Y90M4 | 484 | 1.1KW | 2.90r/min | 2780N.m | 208kg | 35300N | 1.50 |
| SF97RF57-Y90M4 | 420 | 1.1KW | 3.40r/min | 2410N.m | 208kg | 35700N | 1.75 |
Sf97rf57-y3kw motor deceleratorType:
S97rf57-y3kw foot installation -- slash gearServo motor reducer
Sa97rf57-y3kw hollow axle installation -- scalding machine
Saf97rf57-y3kw is thereducing machine for b5 installation snail snails
Saz97rf57-y3kw is thereducing machine for the b14 aerocentric axle snails
Sf97rf57-y3kw is thereducing machine for the b5 solid core snail
Sh97rf57-y3kw is an empty axle lock-drive installation - a snail snail brake
Shf97rf57-y3kw is a b5 franium axle lockboard installation - a snail snail brake
Shz97rf57-y3kw is a b14 flannel axle locker installation - a sledge snail brake
Sa97/trf57-y3kw rotation arm space axis installation - sorrow gear snail stifler
Sh97/trf57-y3kw is an axle locker for the twister arm -- a sledge snail brake
Sa97brf57-y3kw foot hollow axis installation -- scalding snails
Sh97brf57-y3kw bottom foot hollow axle lock-drive installation -- snail snail brake
St97rf57-y3kw solid axis export twirl arm installation - slashed snail strawling

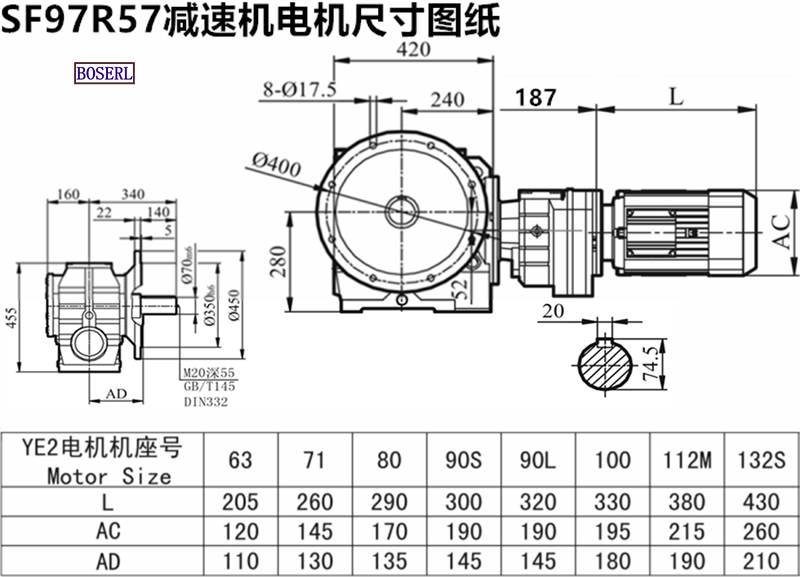

Sf97rf57-y3kw motor deceleratorInstall size drawings
Sf97rf57-y3kw motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: 75kw for an electric slasher gear reduction box sf97rf57-y3kw sf97rf57-y90m4
- 上一条SF97RF57-Y4KW
- 下一条SF97RF57-Y1.1KW
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SF97RF57Y3KW减速机样本 |
|
| SF97RF57Y3KW减速机三维图纸 |
|
