SF97RF57-Y4KWDetailed Information
Keywords: 84kw server slasherbox_sf97rf57-y4kw_sf97rf57-y100m4
SF97RF57-Y4KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97RF57-Y4KW | 219 | 4KW | 6.70r/min | 4690N.m | 234kg | 24100N | 0.90 |
| SF97RF57-Y4KW | 205 | 4KW | 7.10r/min | 4410N.m | 234kg | 28500N | 0.95 |
SF97RF57-Y100M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF97RF57-Y100M4 | 420 | 2.2KW | 3.40r/min | 4890N.m | 220kg | 19000N | 0.85 |
| SF97RF57-Y100M4 | 376 | 2.2KW | 3.80r/min | 4410N.m | 220kg | 28300N | 0.95 |
| SF97RF57-Y100M4 | 327 | 2.2KW | 4.40r/min | 3870N.m | 220kg | 33400N | 1.10 |
| SF97RF57-Y100M4 | 287 | 2.2KW | 5.00r/min | 3420N.m | 220kg | 34300N | 1.25 |
| SF97RF57-Y100M4 | 252 | 2.2KW | 5.70r/min | 2990N.m | 220kg | 35000N | 1.40 |
Sf97rf57-y4kw motor deceleratorType:
S97rf57-y4kw foot installation -- slash gearServo motor reducer
Sa97rf57-y4kw hollow axle installation -- snail snail brakes
Saf97rf57-y4kw is thereducing machine for b5 installation snail snails
Saz97rf57-y4kw is thereducing machine for snail snails with the b14 aerocentric axis
Sf97rf57-y4kw is thereducing machine for snail snails with a b5 solid core
Sh97rf57-y4kw is an empty axle lockboard installation -- snail snail brake
Shf97rf57-y4kw is a b5 franium axle lockboard installation - a snail snail brake
Shz97rf57-y4kw is a b14 franium axle locker installation - a snail snail decelerator
Sa97/trf57-y4kw rotation arm empty axe installation - slashed snail strangler
Sh97/trf57-y4kw is an axle lock lock installation for the twister arm - a snail snail decelerator
Sa97brf57-y4kw foot hollow axis installation -- snail snail brakes
Sh97brf57-y4kw bottom foot hollow axle locker installation -- snail brake
St97rf57-y4kw solid axe export twirl arm installation - slashed snail snail stump

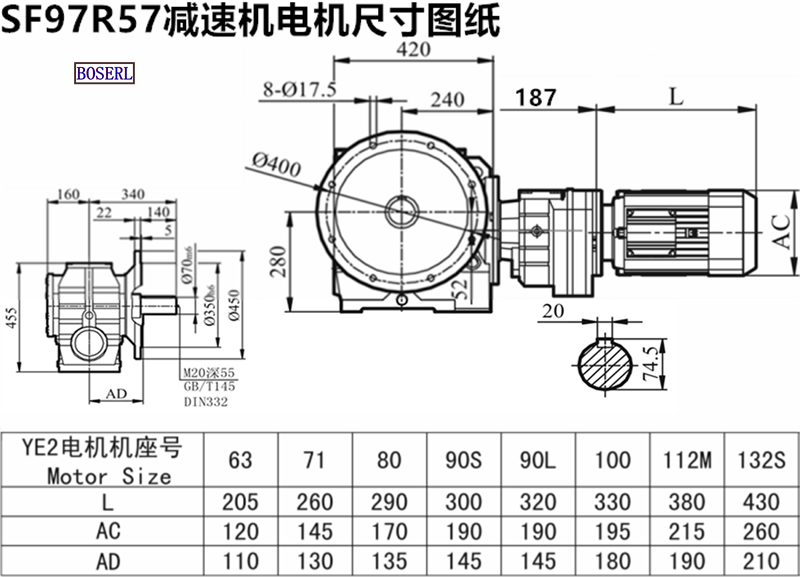

Sf97rf57-y4kw motor deceleratorInstall size drawings
Sf97rf57-y4kw motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
