FF157RF97-Y5.5KWDetailed Information
Keyword: 0. 75 kw power with a parallel axle gear-reducing power _ ff157rf97-y5. 5kw_ff157rf97-y180m4
FF157RF97-Y5.5KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157RF97-Y5.5KW | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| FF157RF97-Y5.5KW | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| FF157RF97-Y5.5KW | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| FF157RF97-Y5.5KW | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| FF157RF97-Y5.5KW | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| FF157RF97-Y5.5KW | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| FF157RF97-Y5.5KW | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| FF157RF97-Y5.5KW | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| FF157RF97-Y5.5KW | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
Ff157rf97-y180m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157RF97-Y180M4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FF157RF97-Y180M4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Ff157rf97-y5. 5kw reduction motor Type:
F157rf97-y5. 5kw bottom foot installation of parallel axes - tilt gearsGearboc
Fa157bf97-y5. 5kw foot hollow axis installed parallel axle-slash gear-reducing machine
Fv157brf97-y5. 5kw bottom foot flow axis installation of parallel axes - tilt gear deviators
Fa157rf97-y5. 5kw sky axes installation of parallel axes - tilt gear deviators
Fv157rf97-y5. 5kw sky axis installation of parallel axes - tilt gear detachors
Faf157rf97-y5. 5kw is the parallel axle-slash gear-reducing machine for the b5 fran core axis
Fvf157rf97-y5. 5kw is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz157rf97-y5. 5kw is a parallel axle for b14 flanges - a slasher
Fvz157rf97-y5. 5kw is the parallel axis of the b14 flannel axle-slasher
Ff157rf97-y5. 5kw is a parallel axle for b5 installation - a slasher
Fh157brf97-y5. 5kw foot hollow axle locks, parallel axle-slasher
Fh157rf97-y5. 5kw is a parallel axle-slash-slasher for empty axle locks
Fhf157rf97-y5. 5kw is the parallel axle-slasher for the b5-farland axle lockboard
Fhz157rf97-y5. 5kw is the parallel axle-slasher for b14 flannel axle

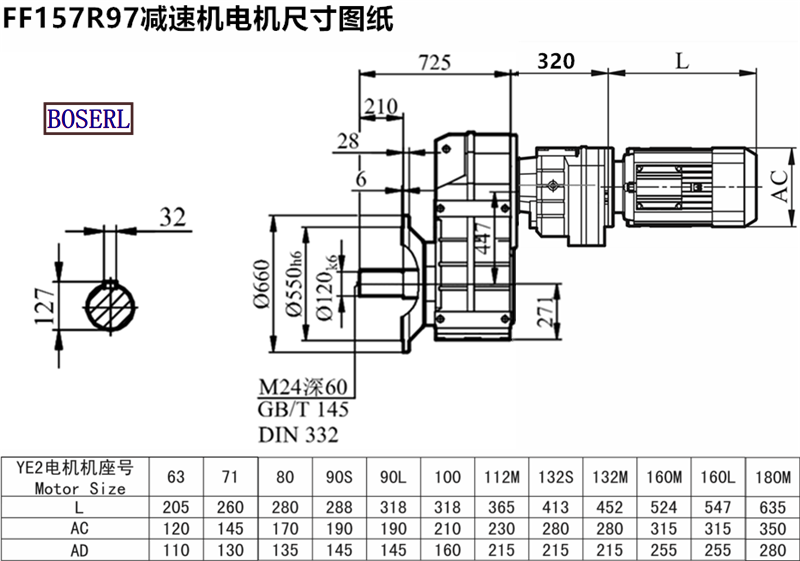

Ff157rf97-y5. 5kw reduction motor Install size drawings
Ff157rf97-y5. 5kw reduction motor The manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
