FF157RF97-Y0.75KWDetailed Information
Keyword: 0. 55 kw power with a parallel axle gear-reducing power _ ff157rf97-y0. 75 kw_ff157rf97-y90m4
FF157RF97-Y0.75KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157RF97-Y0.75KW | 2780 | 0.75KW | 0.52r/min | 11700N.m | 1,067kg | 114600N | 1.55 |
| FF157RF97-Y0.75KW | 1674 | 0.75KW | 0.86r/min | 7310N.m | 1,067kg | 120000N | 2.50 |
| FF157RF97-Y0.75KW | 2427 | 0.75KW | 0.59r/min | 10300N.m | 1,067kg | 116800N | 1.75 |
| FF157RF97-Y0.75KW | 1308 | 0.75KW | 1.10r/min | 5640N.m | 1,067kg | 120000N | 3.20 |
| FF157RF97-Y0.75KW | 1169 | 0.75KW | 1.20r/min | 4980N.m | 1,067kg | 120000N | 3.60 |
Ff157rf97-y90m4 reduction motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF157RF97-Y90M4 | 2780 | 1.1KW | 0.51r/min | 17900N.m | 1,071kg | 100500N | 1.00 |
| FF157RF97-Y90M4 | 2427 | 1.1KW | 0.58r/min | 15800N.m | 1,071kg | 106100N | 1.15 |
| FF157RF97-Y90M4 | 2185 | 1.1KW | 0.65r/min | 14100N.m | 1,071kg | 110000N | 1.25 |
| FF157RF97-Y90M4 | 1944 | 1.1KW | 0.73r/min | 12500N.m | 1,071kg | 113100N | 1.45 |
| FF157RF97-Y90M4 | 1674 | 1.1KW | 0.85r/min | 11100N.m | 1,071kg | 115600N | 1.60 |
| FF157RF97-Y90M4 | 1308 | 1.1KW | 1.10r/min | 8610N.m | 1,071kg | 119100N | 2.10 |
| FF157RF97-Y90M4 | 1169 | 1.1KW | 1.20r/min | 7630N.m | 1,071kg | 120000N | 2.40 |
| FF157RF97-Y90M4 | 953 | 1.1KW | 1.50r/min | 6100N.m | 1,071kg | 120000N | 3.00 |
| FF157RF97-Y90M4 | 845 | 1.1KW | 1.70r/min | 5330N.m | 1,071kg | 120000N | 3.40 |
| FF157RF97-Y90M4 | 446 | 1.1KW | 3.20r/min | 2810N.m | 1,071kg | 120000N | 6.40 |
| FF157RF97-Y90M4 | 302 | 1.1KW | 4.70r/min | 1900 N.m | 1,071kg | 120000N | 9.40 |
Ff157rf97-y0. 75 kwing machine electric motionType:
F157rf97-y0. 75 kw bottom foot installation parallel axes - tilt gearsGearboc
Fa157brf97-y0. 75kw foot hollow axis installed parallel axle-slasher
Fv157brf97-y0. 75kw bottom feet axis installation of parallel axes - tilt gear depressors
Fa157rf97-y0. 75 kw sky axes installation of parallel axes - tilt gear deviators
Fv157rf97-y0. 75kw sky axis installation of parallel axes - tilt-truck deviators
Faf157rf97-y0. 75kw is a parallel axle-slash gear-reducing machine for b5 franium axle
Fvf157rf97-y0. 75kw is the parallel axle of b5 flannel axle-slasher
Faz157rf97-y0. 75kw is a parallel axle-slasher for b14 frank
Fvz157rf97-y0. 75kw is the parallel axis of the b14 flannel axle-slasher
Ff157rf97-y0. 75kw is a parallel axe b5 installation - a tilt gear brake
Fh157brf97-y0. 75kw foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh157rf97-y0. 75kw is a parallel axle-slash-slasher for a hollow axle lock
Fhf157rf97-y0. 75kw is a parallel axle-sweet gear-reducing machine installed on the b5 axle lockboard
Fhz157rf97-y0. 75kw is a parallel axle-slash-slasher for b14 flannel axle lockboard

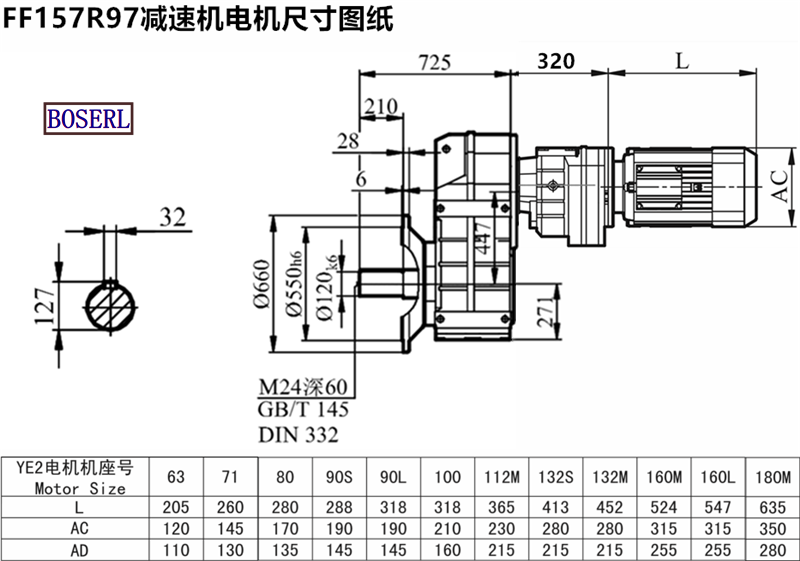

Ff157rf97-y0. 75 kwing machine electric motionInstall size drawings
Ff157rf97-y0. 75 kwing machine electric motionThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 0. 55kw power plant with a parallel axle gear-reducing power plant ff157rf97-y0. 75 kw ff157rf97-y90m4
