FA57RF37-Y0.37KWDetailed Information
Keyword: 132kw's power plant with a parallel axle gear-reducing power _ fa57rf37-y0. 37kw_fa57rf37-y63m4
FA57RF37-Y0.37KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA57RF37-Y0.37KW | 255 | 0.37KW | 5.40r/min | 580N.m | 53kg | 9330N | 1.05 |
| FA57RF37-Y0.37KW | 201 | 0.37KW | 6.90r/min | 455N.m | 53kg | 10200N | 1.30 |
| FA57RF37-Y0.37KW | 181 | 0.37KW | 7.60r/min | 410N.m | 53kg | 10500N | 1.45 |
| FA57RF37-Y0.37KW | 262 | 0.37KW | 5.30r/min | 615N.m | 53kg | 9070N | 0.95 |
| FA57RF37-Y0.37KW | 226 | 0.37KW | 6.10r/min | 525N.m | 53kg | 9740N | 1.15 |
| FA57RF37-Y0.37KW | 200 | 0.37KW | 6.90r/min | 460N.m | 53kg | 10200N | 1.30 |
| FA57RF37-Y0.37KW | 170 | 0.37KW | 8.10r/min | 390N.m | 53kg | 10600N | 1.50 |
| FA57RF37-Y0.37KW | 152 | 0.37KW | 9.00r/min | 345N.m | 53kg | 10900N | 1.70 |
| FA57RF37-Y0.37KW | 134 | 0.37KW | 10.0r/min | 305N.m | 53kg | 11100N | 1.95 |
Fa57rf37-y63m4 deviation electric parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA57RF37-Y63M4 | 851 | 0.12KW | 1.60r/min | 610N.m | 48kg | 9100N | 1.00 |
| FA57RF37-Y63M4 | 738 | 0.12KW | 1.90r/min | 520N.m | 48kg | 9750N | 1.15 |
| FA57RF37-Y63M4 | 646 | 0.12KW | 2.10r/min | 455N.m | 48kg | 10200N | 1.30 |
| FA57RF37-Y63M4 | 558 | 0.12KW | 2.50r/min | 385N.m | 48kg | 10600N | 1.55 |
| FA57RF37-Y63M4 | 506 | 0.12KW | 2.70r/min | 345N.m | 48kg | 10900N | 1.75 |
| FA57RF37-Y63M4 | 452 | 0.12KW | 3.00r/min | 295N.m | 48kg | 11100N | 2.00 |
| FA57RF37-Y63M4 | 426 | 0.12KW | 3.20r/min | 310N.m | 48kg | 11100N | 1.95 |
| FA57RF37-Y63M4 | 382 | 0.12KW | 3.60r/min | 270N.m | 48kg | 11300N | 2.20 |
| FA57RF37-Y63M4 | 330 | 0.12KW | 4.20r/min | 230N.m | 48kg | 11500N | 2.60 |
| FA57RF37-Y63M4 | 298 | 0.12KW | 4.60r/min | 210N.m | 48kg | 11500N | 2.80 |
| FA57RF37-Y63M4 | 262 | 0.12KW | 5.30r/min | 185N.m | 48kg | 11500N | 3.20 |
Fa57rf37-y0. 37kw motor for reductionType:
F57rf37-y0. 37kw bottom foot installation of parallel axes - tilt gearsGearboc
Fa57brf37-y0. 37kw foot hollow axis installed parallel axle-slasher
Fv57brf37-y0. 37kw bottom foot flow axis installation of parallel axes - tilt gear deviators
Fa57rf37-y0. 37kw sky axes installation of parallel axes - tilted gear deviators
Fv57rf37-y0. 37kw sky axis installation of parallel axes - tilt-truck retarders
Faf57rf37-y0. 37kw is a parallel axle-slash gear-reducing machine for b5 franium axle
Fvf57rf37-y0. 37kw is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz57rf37-y0. 37kw is a parallel axle-slash gear-reducing machine for b14 frank
Fvz57rf37-y0. 37kw is the parallel axis of the b14 flannel axle-slasher
Ff57rf37-y0. 37kw is a parallel to the b5 installation of a side axle-slasher
Fh57brf37-y0. 37kw foot hollow axle locks to install parallel axes - slash gears to slow down
Fh57rf37-y0. 37kw is a parallel axle-slash-slasher for empty axle locks
Fhf57rf37-y0. 37kw is a parallel axle-slasher for b5 axle locks-slashers
Fhz57rf37-y0. 37kw is a parallel axle-slasher for b14 flannel axle

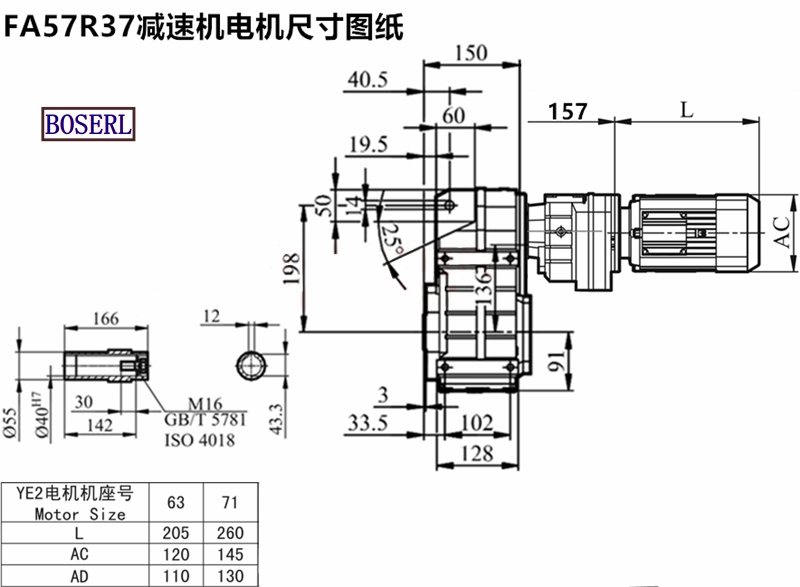

Fa57rf37-y0. 37kw motor for reductionInstall size drawings
Fa57rf37-y0. 37kw motor for reductionThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 132kw's power plant with a parallel axle gear decelerator fa57rf37-y0. 37kw a57rf37-y63m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA57RF37Y0.37KW减速机样本 |
|
| FA57RF37Y0.37KW减速机三维图纸 |
|
