Output transfer 52r/min speed-reducing machine _FA77DV80S4_BOSERL moving FA77DRN80S4 speed-reducing plant

FA77DV80S4Detailed Information

prevnext

FA77DV80S4

TEL：Email:[email protected]

详细信息

Keyword: Output transfer 52r/minreducing motor _FA77DV80S4_FA77DRN80S4_52rpm One minutereducing motor _52r/min/minutereducing machine _52rpm

FA77DV80S4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA77DV80S4	225.79	0.55KW	6.10rpm	850N.m	105kg	18800N	1.75
FA77DV80S4	198.31	0.55KW	7.00rpm	750N.m	105kg	19100N	2.00
FA77DV80S4	188.40	0.55KW	7.30rpm	715N.m	105kg	19200N	2.10
FA77DV80S4	166.47	0.55KW	8.30rpm	630N.m	105kg	19400N	2.40
FA77DV80S4	142.27	0.55KW	9.70rpm	540N.m	105kg	19600N	2.80
FA77DV80S4	130.42	0.55KW	11.00rpm	495N.m	105kg	19700N	3.00
FA77DV80S4	114.45	0.55KW	12.00rpm	435N.m	105kg	19800N	3.40
FA77DV80S4	108.46	0.55KW	13.00rpm	410N.m	105kg	19800N	3.60
FA77DV80S4	94.93	0.55KW	15.00rpm	360N.m	105kg	19900N	4.20

Fa77drn80s4 deviation machine parameter：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA77DRN80S4	225.79	0.55KW	6.10rpm	850N.m	105kg	18800N	1.75
FA77DRN80S4	198.31	0.55KW	7.00rpm	750N.m	105kg	19100N	2.00
FA77DRN80S4	188.40	0.55KW	7.30rpm	715N.m	105kg	19200N	2.10
FA77DRN80S4	166.47	0.55KW	8.30rpm	630N.m	105kg	19400N	2.40
FA77DRN80S4	142.27	0.55KW	9.70rpm	540N.m	105kg	19600N	2.80
FA77DRN80S4	130.42	0.55KW	11.00rpm	495N.m	105kg	19700N	3.00
FA77DRN80S4	114.45	0.55KW	12.00rpm	435N.m	105kg	19800N	3.40
FA77DRN80S4	108.46	0.55KW	13.00rpm	410N.m	105kg	19800N	3.60
FA77DRN80S4	94.93	0.55KW	15.00rpm	360N.m	105kg	19900N	4.20

Fa77dv80s4 gear-reducing motorType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fhf

Fhz

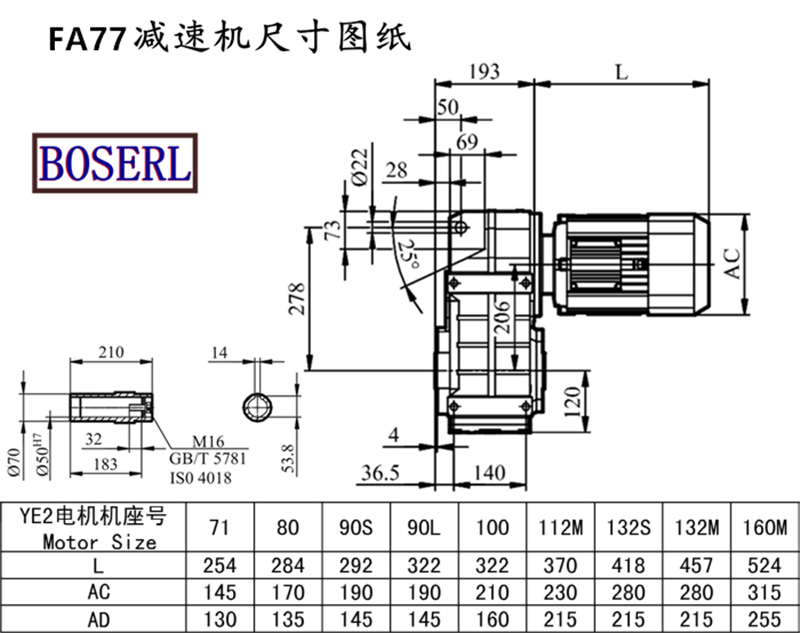

Fa77dv80s4 gear-reducing motorInstall size drawings

Fa77dv80s4 gear-reducing motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
