Keywords: ff37 deviators_ff37y80m4_ff37y90m4_ff37y100m4_ff37 deviators powermaker_ff37 deviators generator

FF37Y80M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF37Y80M4	47.02	0.75KW	31.0rpm	230N.m	29Kg	3720N	0.85
FF37Y80M4	43.83	0.75KW	33.0rpm	215N.m	29Kg	4000N	0.90
FF37Y80M4	38.31	0.75KW	37.0rpm	191N.m	29Kg	4420N	1.05
FF37Y80M4	35.91	0.75KW	40.0rpm	179N.m	29Kg	4570N	1.10
FF37Y80M4	31.69	0.75KW	45.0rpm	158N.m	29Kg	4590N	1.25
FF37Y80M4	28.09	0.75KW	51.0rpm	140N.m	29Kg	4510N	1.45
FF37Y80M4	23.63	0.75KW	61.0rpm	118N.m	29Kg	4370N	1.70
FF37Y80M4	20.57	0.75KW	70.0rpm	103N.m	29Kg	4260N	1.95
FF37Y80M4	19.27	0.75KW	74.0rpm	96N.m	29Kg	4200N	2.10
FF37Y80M4	17.03	0.75KW	84.0rpm	85N.m	29Kg	4090N	2.40
FF37Y80M4	14.33	0.75KW	100rpm	72N.m	29Kg	3930N	2.80
FF37Y80M4	12.87	0.75KW	112rpm	64N.m	29Kg	3840N	3.10

FF37Y90M4Induction Motor 3Ph machine electrical parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF37Y90M4	20.57	1.5KW	70.0rpm	205N.m	36Kg	3410N	0.95
FF37Y90M4	19.27	1.5KW	74.0rpm	193N.m	36Kg	3410N	1.05
FF37Y90M4	17.03	1.5KW	84.0rpm	170N.m	36Kg	3390N	1.15
FF37Y90M4	14.33	1.5KW	100rpm	144N.m	36Kg	3350N	1.40
FF37Y90M4	12.87	1.5KW	111rpm	129N.m	36Kg	3310N	1.55
FF37Y90M4	11.08	1.5KW	129rpm	111N.m	36Kg	3240N	1.70
FF37Y90M4	10.42	1.5KW	137rpm	104N.m	36Kg	3210N	1.75
FF37Y90M4	8.97	1.5KW	159rpm	90N.m	36Kg	3130N	1.95
FF37Y90M4	8.01	1.5KW	178rpm	80N.m	36Kg	3070N	2.10

Ff37y100m4 reduction machine parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FF37Y100M4	11.08	3KW	131rpm	215N.m	48Kg	2340N	0.85
FF37Y100M4	10.42	3KW	140rpm	205N.m	48Kg	2360N	0.90
FF37Y100M4	8.97	3KW	162rpm	177N.m	48Kg	2400N	1.00
FF37Y100M4	8.01	3KW	182rpm	158N.m	48Kg	2410N	1.10
FF37Y100M4	6.74	3KW	216rpm	133N.m	48Kg	2290N	1.05
FF37Y100M4	6.05	3KW	240rpm	119N.m	48Kg	2290N	1.15
FF37Y100M4	5.21	3KW	279rpm	103N.m	48Kg	2280N	1.20
FF37Y100M4	4.90	3KW	297rpm	96N.m	48Kg	2270N	1.25
FF37Y100M4	4.22	3KW	345rpm	83N.m	48Kg	2240N	1.35
FF37Y100M4	3.77	3KW	386rpm	74N.m	48Kg	2210N	1.40

Ff37 electric retrenchorType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fhf

Fhz

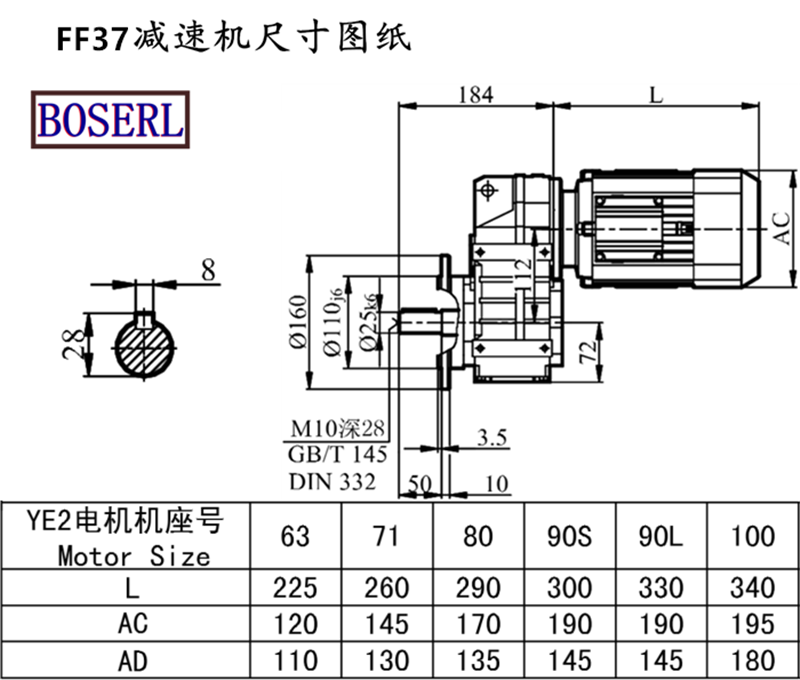

Ff37 electric retrenchorInstall size drawings

Ff37 electric retrenchorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph

Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc

FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor

FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
