K107RF77-Y2.2KWDetailed Information
Keywords: 2. 2 kw electrics with double axle reduction box_k107rf77-y2. 2kw_k107rf77-y80m4
K107RF77-Y2.2KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K107RF77-Y2.2KW | 615 | 2.2KW | 2.30r/min | 8300N.m | 318kg | 65000N | 0.95 |
| K107RF77-Y2.2KW | 522 | 2.2KW | 2.70r/min | 7040N.m | 318kg | 65000N | 1.15 |
| K107RF77-Y2.2KW | 461 | 2.2KW | 3.10r/min | 6190N.m | 318kg | 65000N | 1.30 |
| K107RF77-Y2.2KW | 408 | 2.2KW | 3.50r/min | 5480N.m | 318kg | 65000N | 1.45 |
| K107RF77-Y2.2KW | 364 | 2.2KW | 3.90r/min | 4920N.m | 318kg | 65000N | 1.60 |
| K107RF77-Y2.2KW | 318 | 2.2KW | 4.50r/min | 4300N.m | 318kg | 65000N | 1.85 |
| K107RF77-Y2.2KW | 286 | 2.2KW | 5.00r/min | 3870N.m | 318kg | 65000N | 2.10 |
| K107RF77-Y2.2KW | 251 | 2.2KW | 5.70r/min | 3390N.m | 318kg | 65000N | 2.40 |
K107RF77-Y80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K107RF77-Y80M4 | 1713 | 0.75KW | 0.84r/min | 7710N.m | 302kg | 65000N | 1.05 |
| K107RF77-Y80M4 | 1554 | 0.75KW | 0.92r/min | 7000N.m | 302kg | 65000N | 1.15 |
| K107RF77-Y80M4 | 1336 | 0.75KW | 1.10r/min | 6020N.m | 302kg | 65000N | 1.35 |
| K107RF77-Y80M4 | 1166 | 0.75KW | 1.20r/min | 5250N.m | 302kg | 65000N | 1.50 |
| K107RF77-Y80M4 | 1030 | 0.75KW | 1.40r/min | 4540N.m | 302kg | 65000N | 1.75 |
| K107RF77-Y80M4 | 904 | 0.75KW | 1.60r/min | 3960N.m | 302kg | 65000N | 2.00 |
| K107RF77-Y80M4 | 793 | 0.75KW | 1.80r/min | 3560N.m | 302kg | 65000N | 2.20 |
| K107RF77-Y80M4 | 696 | 0.75KW | 2.10r/min | 3100N.m | 302kg | 65000N | 2.60 |
| K107RF77-Y80M4 | 615 | 0.75KW | 2.30r/min | 2690N.m | 302kg | 65000N | 3.00 |
K107RF77-Y2.2KWSpeeding machine type:
K107rf77-y2. 2kw bottom foot installation of tilt gear - umbrella gear deviation engine
Ka107bf77-y2. 2kw bottom foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv107brf77-y2. 2kw foot larvae axles with tilt gears - umbrella gear-reducing power
Kh107brf77-y2. 2kw foot hollow axle locks fitted with tilt gears -Right-angle shaft reducer motor
Frf107rf77-y2. 2kwb5 installation of tilt gear - umbrella gear deceleration power
Kaf107rf77-y2. 2kwb5 installation of tilt gears - umbrella gear reduction power
Frf107rf77-y2. 2kwb5 installation of tilt gears - umbrella gear-reducing power
Khf107rf77-y2. 2kwb5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka107rf77-y2. 2kw hollow axial tilt gears - umbrella gear decelerators
The kv107rf77-y2. 2kw spaced axle is equipped with tilt gears - an umbrella gear decelerator
Kh107rf77-y2. 2kw hollow axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on the kt107rf77-y2. 2kw hollow axle - an umbrella gear decelerator
Kaz107rf77-y2. 2kwb14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing power units on the flannel axis kvz107rf77-y2. 2kwb14
Dhz107rf77-y2. 2kwb14 franium axle locks fitted with tilt gears - umbrella gear reduction power

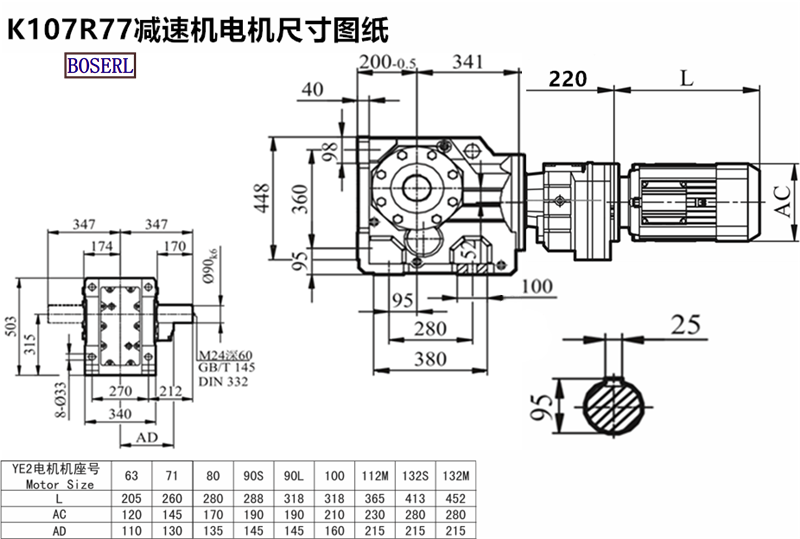

K107RF77-Y2.2KWInduction Motor 3Ph motors installed size drawings
K107rf77-y2. 2kw power-reducing plantMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
