K127R87DT132ML4Detailed Information
Keywords: how to fit 132kw electrics with cone gear reduction box_k127r87dt132ml4_k127r87dre100lc4
K127R87DT132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K127R87DT132ML4 | 330 | 7.5KW | 4.40r/min | 14800N.m | 516kg | 76200N | 0.85 |
| K127R87DT132ML4 | 287 | 7.5KW | 5.10r/min | 12800N.m | 516kg | 79300N | 1.00 |
| K127R87DT132ML4 | 253 | 7.5KW | 5.80r/min | 11300N.m | 516kg | 80000N | 1.15 |
| K127R87DT132ML4 | 213 | 7.5KW | 6.90r/min | 9550N.m | 516kg | 80900N | 1.35 |
| K127R87DT132ML4 | 200 | 7.5KW | 7.30r/min | 9100N.m | 516kg | 81100N | 1.30 |
| K127R87DT132ML4 | 166 | 7.5KW | 8.80r/min | 7530N.m | 516kg | 81600N | 1.60 |
| K127R87DT132ML4 | 147 | 7.5KW | 10.0r/min | 6640N.m | 516kg | 81900N | 1.80 |
K127r87dre100lc4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K127R87DRE100LC4 | 536 | 3KW | 2.70r/min | 9580N.m | 478kg | 80900N | 1.35 |
| K127R87DRE100LC4 | 473 | 3KW | 3.10r/min | 8410N.m | 478kg | 81300N | 1.55 |
| K127R87DRE100LC4 | 418 | 3KW | 3.50r/min | 7560N.m | 478kg | 81600N | 1.70 |
| K127R87DRE100LC4 | 367 | 3KW | 4.00r/min | 6610N.m | 478kg | 81900N | 1.95 |
| K127R87DRE100LC4 | 330 | 3KW | 4.40r/min | 5930N.m | 478kg | 82100N | 2.20 |
| K127R87DRE100LC4 | 287 | 3KW | 5.10r/min | 5090N.m | 478kg | 82300N | 2.60 |
K127R87DT132ML4Speeding machine type:
K127r87dt132ml4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka127br87dt132ml4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv127br87dt132ml4 bottom foot larvae axis fitted with tilt gears - umbrella gear reduction power
Kh127 br87dt132 ml4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r87dt132ml4b5 installation of tilt gear - umbrella gear-reducing power
Kaf127r87dt132ml4b5 installation of tilt gear - umbrella gear reduction power
Kvf127r87dt132ml4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf127r87dt132ml4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka127r87dt132ml4 hollow axle tilt gears - an umbrella gear reduction power
Kv127r87dt132ml4 spaced axles with tilt gears - umbrella gear reduction power
Kh127r87dt132ml4 sky axe locked tilt gear - umbrella gear deviation engine
The kt127r87dt132ml4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz127r87dt132ml4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r87dt132ml4b14 francoons installed slashing gears - umbrella gear-reducing motors
Khz127r87dt132ml4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

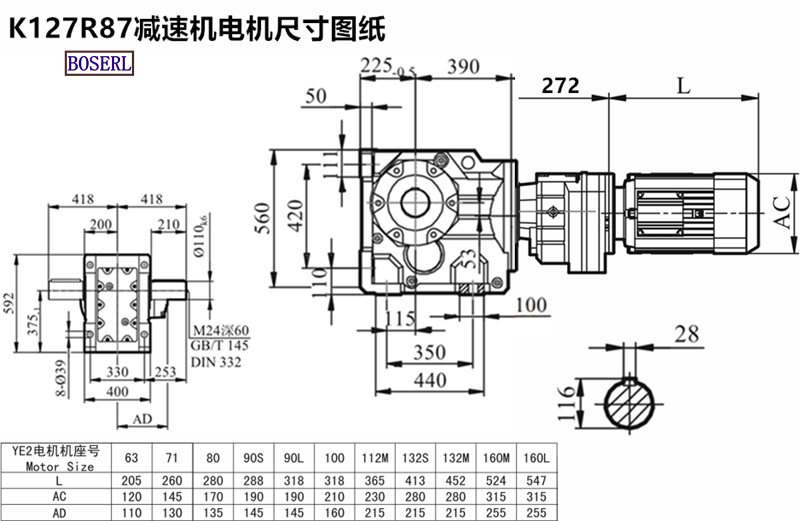

K127R87DT132ML4Induction Motor 3Ph motors installed size drawings
K127r87dt132ml4 power deviation plant, three days in advanceMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
