K187R107DT180LC4Detailed Information
Keyword: how does a 45kw power fit a straight-angle air-reducing machine _ k187r107dt180lc4_k187r107dre160s4
K187R107DT180LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K187R107DT180LC4 | 454 | 22KW | 3.20r/min | 60400N.m | 2,038kg | 190000N | 0.85 |
| K187R107DT180LC4 | 355 | 22KW | 4.20r/min | 46700N.m | 2,038kg | 190000N | 1.05 |
| K187R107DT180LC4 | 261 | 22KW | 5.60r/min | 34700N.m | 2,038kg | 190000N | 1.45 |
| K187R107DT180LC4 | 221 | 22KW | 6.70r/min | 29400N.m | 2,038kg | 190000N | 1.70 |
| K187R107DT180LC4 | 193 | 22KW | 7.60r/min | 25600N.m | 2,038kg | 190000N | 1.95 |
| K187R107DT180LC4 | 163 | 22KW | 9.00r/min | 21600N.m | 2,038kg | 190000N | 2.30 |
K187R107DRE160S4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| K187R107DRE160S4 | 835 | 11KW | 1.80r/min | 54600N.m | 1,968kg | 190000N | 0.90 |
| K187R107DRE160S4 | 520 | 11KW | 2.80r/min | 34300N.m | 1,968kg | 190000N | 1.45 |
| K187R107DRE160S4 | 729 | 11KW | 2.00r/min | 47500N.m | 1,968kg | 190000N | 1.05 |
| K187R107DRE160S4 | 622 | 11KW | 2.40r/min | 40500N.m | 1,968kg | 190000N | 1.25 |
| K187R107DRE160S4 | 454 | 11KW | 3.20r/min | 29900N.m | 1,968kg | 190000N | 1.65 |
| K187R107DRE160S4 | 355 | 11KW | 4.20r/min | 23100N.m | 1,968kg | 190000N | 2.20 |
K187R107DT180LC4Speeding machine type:
K187r107dt180lc4 bottom foot with tilt gear - umbrella gear deviation engine
Ka187 br107dt180lc4 foot hollow axis with tilt gear - umbrella gear reduction power
Kv187 br107dt180lc4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
Kh187 br107dt180lc4 foot hollow axis locks installed with tilt gears -Right-angle shaft reducer motor
Frf 187r107dt180lc4b5 installation of tilt gear - umbrella gear reduction power
Kaf187r107dt180lc4b5 installation of tilt gear - umbrella gear reduction power
Kvf 187r107dt180lc4b5 franco-axis installation of tilt gears - umbrella gear-reducing power
Khf187r107dt180lc4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka187r107dt180lc4 sky axis tilt gear - umbrella gear deviation power
Kv187r107dt180lc4 space cores fitted with tilt gears - umbrella gear reduction power
Kh187r107dt180lc4 sky axe locked tilt gear - umbrella gear deviation engine
The kt187r107dt180lc4 hollow axis is equipped with tilt gears - an umbrella gear decelerator
Kaz187r107dt180lc4b14 installation of tilt gear - umbrella gear reduction power
Frf z 187r107dt180lc4b14 installation of tilt gears - umbrella gear reduction power
Khz187r107dt180lc4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

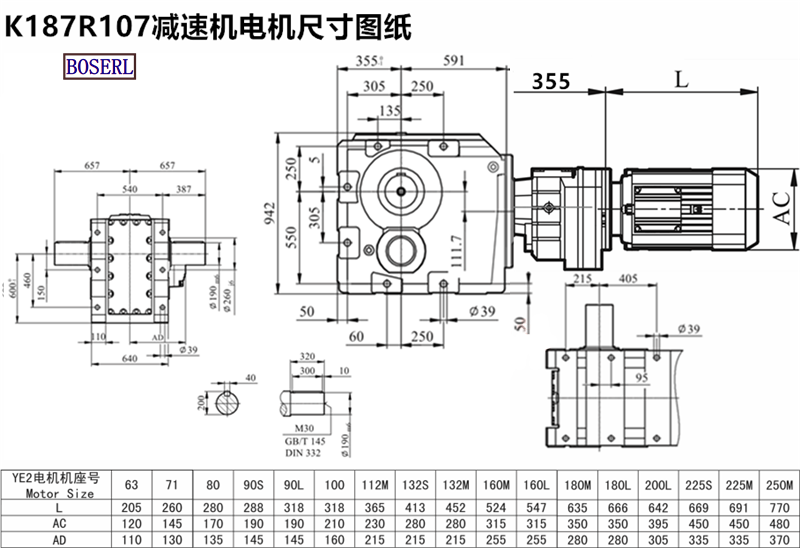

K187R107DT180LC4Induction Motor 3Ph motors installed size drawings
K187 r107 dt180lc4 deviation power plant, three days' appointmentMotor-gear reducer
Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor
K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox
K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How does 45kw power fit in a straight angle k187r107dt180lc4 k187r107dr160s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| K187R107DT180LC4减速机样本 |
|
| K187R107DT180LC4减速机三维图纸 |
|
