Output transfer 47.5r/min speed-reducing machine _K37DT90M4_BOSERL moving K37DRS90M4 speed-reducing plant

K37DT90M4Detailed Information

prevnext

K37DT90M4

TEL：Email:[email protected]

详细信息

Keyword: Output transfer 47.5r/minreducing motor _ K37DT90M4_K37DRS90M4_47.5rpm _ one minutereducing motor _47.5r/min/minute-reducing machine _47.5rpm

K37DT90M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K37DT90M4	23.36	1.5KW	60rpm	235N.m	29kg	2860N	0.8
K37DT90M4	20.19	1.5KW	69rpm	205N.m	29kg	2910N	0.9
K37DT90M4	17.15	1.5KW	82rpm	176N.m	29kg	2940N	1.05
K37DT90M4	15.31	1.5KW	91rpm	157N.m	29kg	2950N	1.1
K37DT90M4	13.08	1.5KW	107rpm	134N.m	29kg	2930N	1.25
K37DT90M4	12.14	1.5KW	115rpm	124N.m	29kg	2920N	1.3
K37DT90M4	10.49	1.5KW	133rpm	107N.m	29kg	2880N	1.5
K37DT90M4	8.91	1.5KW	157rpm	91N.m	29kg	2820N	1.75
K37DT90M4	7.96	1.5KW	176rpm	81N.m	29kg	2780N	1.9
K37DT90M4	6.8	1.5KW	206rpm	70N.m	29kg	2700N	2.2
K37DT90M4	6.37	1.5KW	220rpm	65N.m	29kg	2670N	2.2
K37DT90M4	5.36	1.5KW	261rpm	55N.m	29kg	2580N	2.6
K37DT90M4	3.98	1.5KW	352rpm	41N.m	29kg	2420N	3.1

K37DRS90M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K37DRS90M4	23.36	1.5KW	60rpm	235N.m	29kg	2860N	0.8
K37DRS90M4	20.19	1.5KW	69rpm	205N.m	29kg	2910N	0.9
K37DRS90M4	17.15	1.5KW	82rpm	176N.m	29kg	2940N	1.05
K37DRS90M4	15.31	1.5KW	91rpm	157N.m	29kg	2950N	1.1
K37DRS90M4	13.08	1.5KW	107rpm	134N.m	29kg	2930N	1.25
K37DRS90M4	12.14	1.5KW	115rpm	124N.m	29kg	2920N	1.3
K37DRS90M4	10.49	1.5KW	133rpm	107N.m	29kg	2880N	1.5
K37DRS90M4	8.91	1.5KW	157rpm	91N.m	29kg	2820N	1.75
K37DRS90M4	7.96	1.5KW	176rpm	81N.m	29kg	2780N	1.9
K37DRS90M4	6.8	1.5KW	206rpm	70N.m	29kg	2700N	2.2
K37DRS90M4	6.37	1.5KW	220rpm	65N.m	29kg	2670N	2.2
K37DRS90M4	5.36	1.5KW	261rpm	55N.m	29kg	2580N	2.6
K37DRS90M4	3.98	1.5KW	352rpm	41N.m	29kg	2420N	3.1

K37DT90M4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

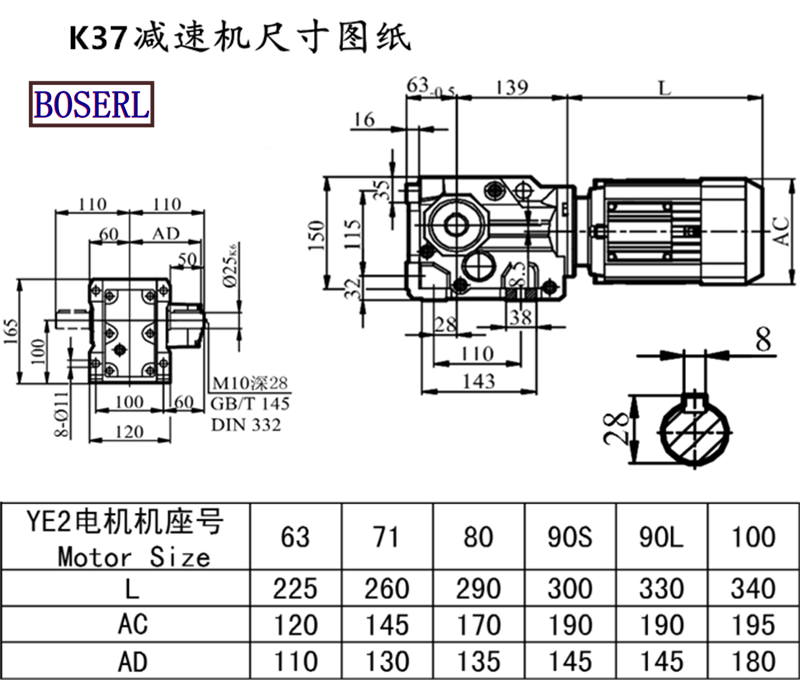

K37DT90M4Induction Motor 3Ph motors installed size drawings

K37DT90M4At thereducing plant: three days in advance

Motor-gear reducerPresentation of application cases:

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
