K77DT90L4

TEL：Email:[email protected]

详细信息

Keywords: k77dt90l4_k77dre90l4_2. 2kwreducing machine_2. 2 kw frequency-reducing machine

K77DT90L4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K77DT90L4	113.56	2.2KW	12rpm	1700N.m	75Kg	14200N	0.9
K77DT90L4	97.05	2.2KW	14rpm	1450N.m	75Kg	16000N	1.05
K77DT90L4	88.97	2.2KW	16rpm	1330N.m	75Kg	16700N	1.15
K77DT90L4	78.07	2.2KW	18rpm	1170N.m	75Kg	17600N	1.3
K77DT90L4	73.99	2.2KW	19rpm	1110N.m	75Kg	17900N	1.4
K77DT90L4	64.75	2.2KW	22rpm	970N.m	75Kg	18400N	1.6
K77DT90L4	58.34	2.2KW	24rpm	870N.m	75Kg	18800N	1.75
K77DT90L4	51.18	2.2KW	27rpm	765N.m	75Kg	19100N	2
K77DT90L4	45.16	2.2KW	31rpm	675N.m	75Kg	19300N	2.3
K77DT90L4	40.04	2.2KW	35rpm	600N.m	75Kg	19500N	2.6
K77DT90L4	35.2	2.2KW	40rpm	525N.m	75Kg	19600N	2.9
K77DT90L4	30.89	2.2KW	45rpm	460N.m	75Kg	19800N	3.3
K77DT90L4	29.27	2.2KW	48rpm	435N.m	75Kg	19800N	3.5
K77DT90L4	25.62	2.2KW	55rpm	380N.m	75Kg	19900N	4

K77DRE90L4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K77DRE90L4	113.56	2.2KW	12rpm	1700N.m	75Kg	14200N	0.9
K77DRE90L4	97.05	2.2KW	14rpm	1450N.m	75Kg	16000N	1.05
K77DRE90L4	88.97	2.2KW	16rpm	1330N.m	75Kg	16700N	1.15
K77DRE90L4	78.07	2.2KW	18rpm	1170N.m	75Kg	17600N	1.3
K77DRE90L4	73.99	2.2KW	19rpm	1110N.m	75Kg	17900N	1.4
K77DRE90L4	64.75	2.2KW	22rpm	970N.m	75Kg	18400N	1.6
K77DRE90L4	58.34	2.2KW	24rpm	870N.m	75Kg	18800N	1.75
K77DRE90L4	51.18	2.2KW	27rpm	765N.m	75Kg	19100N	2
K77DRE90L4	45.16	2.2KW	31rpm	675N.m	75Kg	19300N	2.3
K77DRE90L4	40.04	2.2KW	35rpm	600N.m	75Kg	19500N	2.6
K77DRE90L4	35.2	2.2KW	40rpm	525N.m	75Kg	19600N	2.9
K77DRE90L4	30.89	2.2KW	45rpm	460N.m	75Kg	19800N	3.3
K77DRE90L4	29.27	2.2KW	48rpm	435N.m	75Kg	19800N	3.5
K77DRE90L4	25.62	2.2KW	55rpm	380N.m	75Kg	19900N	4

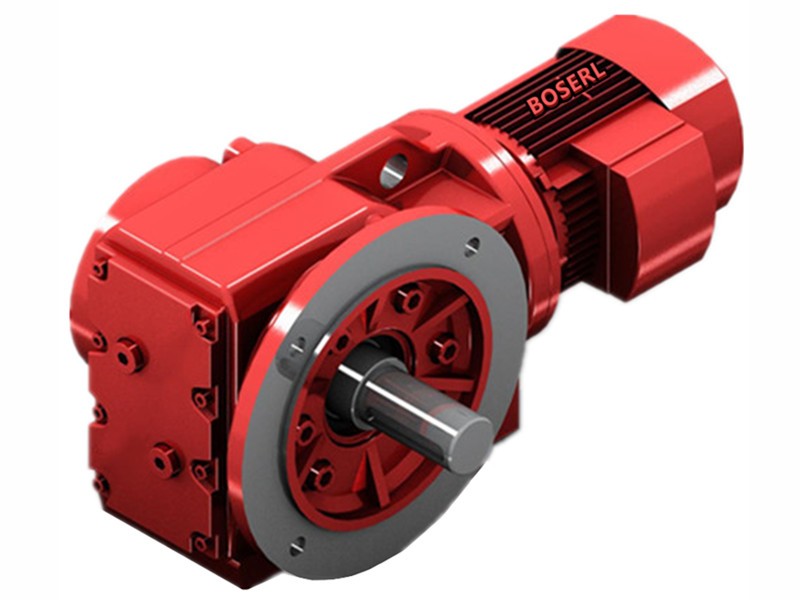

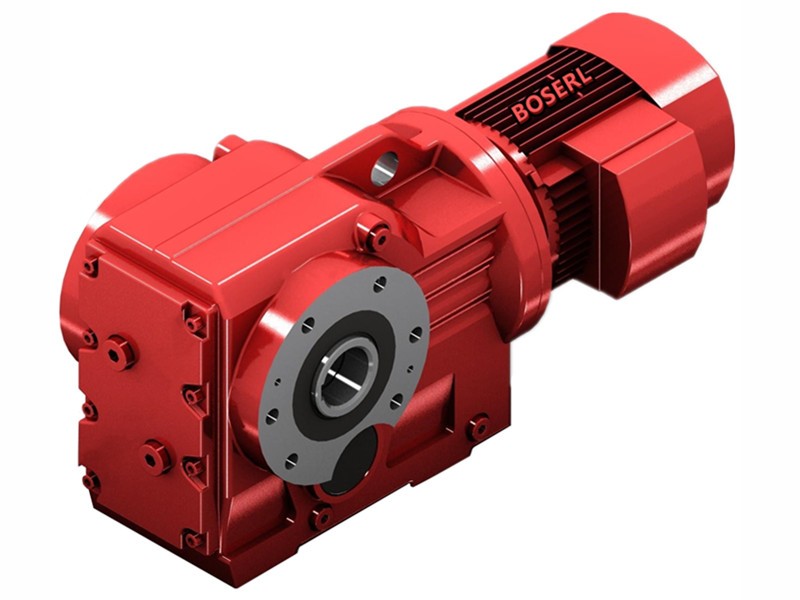

K77DT90L4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

K77DT90L4Induction Motor 3Ph motors installed size drawings

K77DT90L4At thereducing plant: three days in advance

Motor-gear reducerPresentation of application cases:

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
