K87R57DV90M4Detailed Information

prevnext

K87R57DV90M4

TEL：Email:[email protected]

详细信息

Keyword: how the 200kw power goes with the zero deviator _k87r57dv90m4_k87r57drn71m4

K87R57DV90M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K87R57DV90M4	474	1.1KW	3.00r/min	3200N.m	123kg	26600N	0.85
K87R57DV90M4	426	1.1KW	3.30r/min	2870N.m	123kg	27100N	0.95
K87R57DV90M4	373	1.1KW	3.80r/min	2530N.m	123kg	27500N	1.05
K87R57DV90M4	330	1.1KW	4.30r/min	2210N.m	123kg	27800N	1.20
K87R57DV90M4	294	1.1KW	4.80r/min	1980N.m	123kg	28100N	1.35
K87R57DV90M4	250	1.1KW	5.70r/min	1700N.m	123kg	28300N	1.60
K87R57DV90M4	236	1.1KW	6.00r/min	1610N.m	123kg	28400N	1.70
K87R57DV90M4	201	1.1KW	7.10r/min	1360N.m	123kg	28600N	1.95

K87r57drn71m4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
K87R57DRN71M4	1415	0.37KW	0.97r/min	3250N.m	113.5kg	26500N	0.85
K87R57DRN71M4	1229	0.37KW	1.10r/min	2820N.m	113.5kg	27100N	0.95
K87R57DRN71M4	1078	0.37KW	1.30r/min	2460N.m	113.5kg	27600N	1.10
K87R57DRN71M4	951	0.37KW	1.40r/min	2140N.m	113.5kg	27900N	1.25
K87R57DRN71M4	837	0.37KW	1.60r/min	1870N.m	113.5kg	28200N	1.45
K87R57DRN71M4	726	0.37KW	1.90r/min	1620N.m	113.5kg	28400N	1.65
K87R57DRN71M4	638	0.37KW	2.20r/min	1440N.m	113.5kg	28500N	1.85
K87R57DRN71M4	562	0.37KW	2.50r/min	1250N.m	113.5kg	28600N	2.20
K87R57DRN71M4	474	0.37KW	2.90r/min	1050N.m	113.5kg	28800N	2.60
K87R57DRN71M4	426	0.37KW	3.20r/min	950N.m	113.5kg	28800N	2.80
K87R57DRN71M4	373	0.37KW	3.70r/min	830N.m	113.5kg	28900N	3.20

K87R57DV90M4Speeding machine type:

K87r57dv90m4 foot is equipped with tilt gears - umbrella gear reduction power

Ka87br57dv90m4 foot hollow axis with tilt gears - umbrella gear-reducing power

The kv87br57dv90m4 bottom foot larvae axis is equipped with tilt gears - umbrella gear reduction power

Kh87br57dv90m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf87r57dv90m4b5 installation of tilt gears - umbrella gear reduction power

Kaf87r57dv90m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power

Frf87r57dv90m4b5 installation of tilt gear - umbrella gear-reducing power

Khf87r57dv90m4b5farland axial axle locks fitted with tilt gears - an umbrella gear-reducing motor

Ka87r57dv90m4 hollow axle tilt gears - an umbrella gear deceleration power

Kv87r57dv90m4 space cores fitted with tilt gears - umbrella gear reduction power

Kh87r57dv90m4 empty axle locks the slashing gears - an umbrella gear reduction power

Installation of tilt gears on kt87r57dv90m4 hollow axle - umbrella gear reduction power

Kaz87r57dv90m4b14 installation of tilt gear - umbrella gear reduction power

Installation of tilt gears - umbrella gear-reducing motors on the flannel axes of the kvz87r57dv90m4b14

Khz87r57dv90m4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

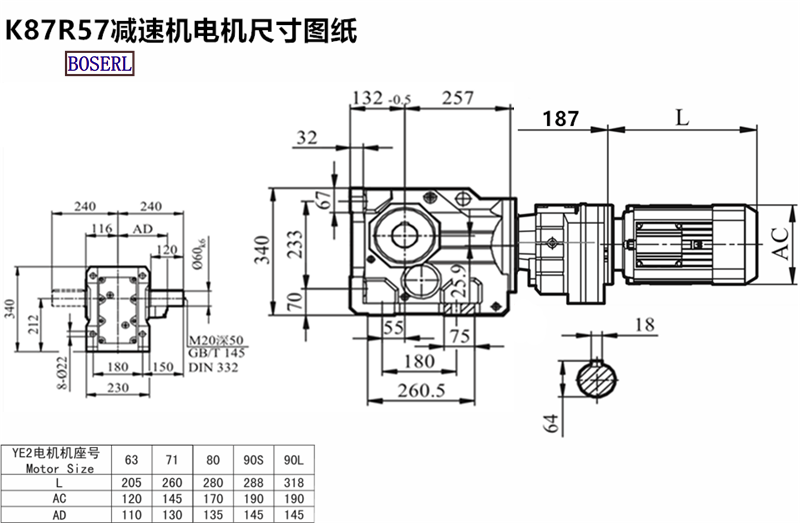

K87R57DV90M4Induction Motor 3Ph motors installed size drawings

K87r57dv90m4 deviation electric power plant. please make an appointment three days in advanceMotor-gear reducer

Motor-gear reducer,Motor gearbox,Crane Motor,Dual output shaft reducer Geared motor

K37 gear reducer, K47 gear reducer, K57 gear reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer, K187 Gear Reducer Helical bewel gearbox

K Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW

标签: How the 200kw power sets with the

上一条K87R57DV80M4
下一条K87R57DR80MK4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
K87R57DV90M4减速机样本
K87R57DV90M4减速机三维图纸
