KA127R77DR112M4Detailed Information
Keyword: how the 15kw power works with a straight-angle mid-angle brake_ka127r77dr112m4_ka127r77dve71m4
KA127R77DR112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DR112M4 | 610 | 4KW | 2.40r/min | 14700N.m | 462kg | 76500N | 0.90 |
| KA127R77DR112M4 | 549 | 4KW | 2.70r/min | 13200N.m | 462kg | 79000N | 1.00 |
| KA127R77DR112M4 | 477 | 4KW | 3.10r/min | 11500N.m | 462kg | 80000N | 1.15 |
| KA127R77DR112M4 | 418 | 4KW | 3.50r/min | 10100N.m | 462kg | 80600N | 1.30 |
KA127R77DVE71M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R77DVE71M4 | 7482 | 0.37KW | 0.18r/min | 16500N.m | 426.5kg | 72700N | 0.80 |
| KA127R77DVE71M4 | 6565 | 0.37KW | 0.21r/min | 14500N.m | 426.5kg | 76900N | 0.90 |
| KA127R77DVE71M4 | 5804 | 0.37KW | 0.24r/min | 12600N.m | 426.5kg | 79400N | 1.05 |
| KA127R77DVE71M4 | 5027 | 0.37KW | 0.27r/min | 11000N.m | 426.5kg | 80200N | 1.20 |
| KA127R77DVE71M4 | 4423 | 0.37KW | 0.31r/min | 9610N.m | 426.5kg | 80800N | 1.35 |
| KA127R77DVE71M4 | 3889 | 0.37KW | 0.35r/min | 8410N.m | 426.5kg | 81300N | 1.55 |
| KA127R77DVE71M4 | 3311 | 0.37KW | 0.42r/min | 7080N.m | 426.5kg | 81800N | 1.85 |
| KA127R77DVE71M4 | 1926 | 0.37KW | 0.72r/min | 4280N.m | 426.5kg | 82400N | 3.00 |
| KA127R77DVE71M4 | 1757 | 0.37KW | 0.79r/min | 3900N.m | 426.5kg | 82500N | 3.30 |
| KA127R77DVE71M4 | 1541 | 0.37KW | 0.90r/min | 3390N.m | 426.5kg | 82600N | 3.80 |
KA127R77DR112M4Speeding machine type:
K127r77dr112m4 bottom foot with tilt gear - umbrella gear reduction power
Ka127br77dr112m4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv127 br77dr112m4 foot larvae axis is equipped with tilt gears -- umbrella gear-reducing power sets
Kh127 br77dr112m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 127r77dr112m4b5 installation of tilt gear - umbrella gear reduction power
Kaf127r77dr112m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf127r77dr112m4b5-franco cardiac axles with tilt gears - umbrella gear-reducing power
Khf127r77dr112m4b5 franium axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dr112m4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv127r77dr112m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh127r77dr112m4 empty axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on kt127r77dr112m4 hollow axle - umbrella gear reduction power
Kaz127r77dr112m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dr112m4b14 installation of tilt gears - umbrella gear reduction power
Khz127r77dr112m4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

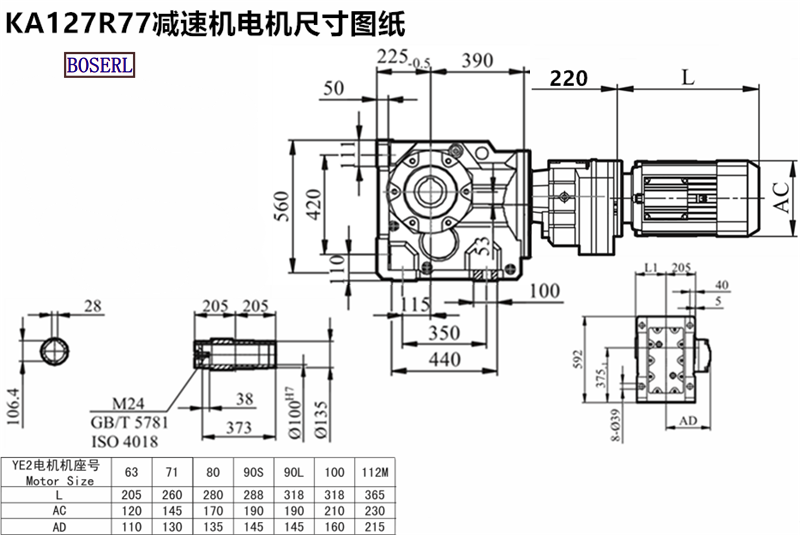

KA127R77DR112M4Induction Motor 3Ph motors installed size drawings
Ka127r77dr112m4 deviation electric power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 15kw power is equipped with a straight-angle mid-pore brake ka127r77dr112m4kka127r77dve71m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA127R77DR112M4减速机样本 |
|
| KA127R77DR112M4减速机三维图纸 |
|
