KA187BR107DM225S4Detailed Information
Keywords: 7. 5 kw to service the electric cone cortex gear-reducing motor _ka187 br107dm225s4_ka187 br107drrs132l4
KA187BR107DM225S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA187BR107DM225S4 | 261 | 37KW | 5.70r/min | 58500N.m | 2,153kg | 190000N | 0.85 |
| KA187BR107DM225S4 | 221 | 37KW | 6.70r/min | 49600N.m | 2,153kg | 190000N | 1.00 |
| KA187BR107DM225S4 | 193 | 37KW | 7.60r/min | 43300N.m | 2,153kg | 190000N | 1.15 |
| KA187BR107DM225S4 | 163 | 37KW | 9.00r/min | 36500N.m | 2,153kg | 190000N | 1.35 |
KA187BR107DRS132L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA187BR107DRS132L4 | 835 | 7.5KW | 1.80r/min | 37100N.m | 1,926kg | 190000N | 1.35 |
| KA187BR107DRS132L4 | 729 | 7.5KW | 2.00r/min | 32200N.m | 1,926kg | 190000N | 1.55 |
| KA187BR107DRS132L4 | 622 | 7.5KW | 2.40r/min | 27400N.m | 1,926kg | 190000N | 1.80 |
KA187BR107DM225S4Speeding machine type:
K187r107dm225s4 foot with tilt gears - umbrella gear reduction power
Ka187 br107dm225s4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv187 br107dm225s4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
Kh187 br107dm225s4 foot hollow axle locks fitted with tilt gears -Right-angle shaft reducer motor
Frf 187r107dm225s4b5 is equipped with tilt gears - an umbrella gear decelerator
Kaf 187r107dm225s4b5 installation of tilt gears - umbrella gear reduction power
Kvf 187r107dm225s4b5 franco-axis fitted with tilt gears - an umbrella gear-reducing motor
Khf-187r107dm225s4b5 franium axle locks fitted with tilt gears - umbrella gear-reducing power
Ka187r107dm225s4 tilt gears - umbrella gear deviation power
Kv187r107dm225s4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh187r107dm225s4 sky axes locked tilt gears - umbrella gear deviation engine
The kt187r107dm225s4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz187 r107dm225s4b14 french aerocentric axles with tilt gears - an umbrella gear reduction power
Kvz187r107dm225s4b14 franco-axis fitted with tilt gears - an umbrella gear-reducing motor
Khz187r107dm225s4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

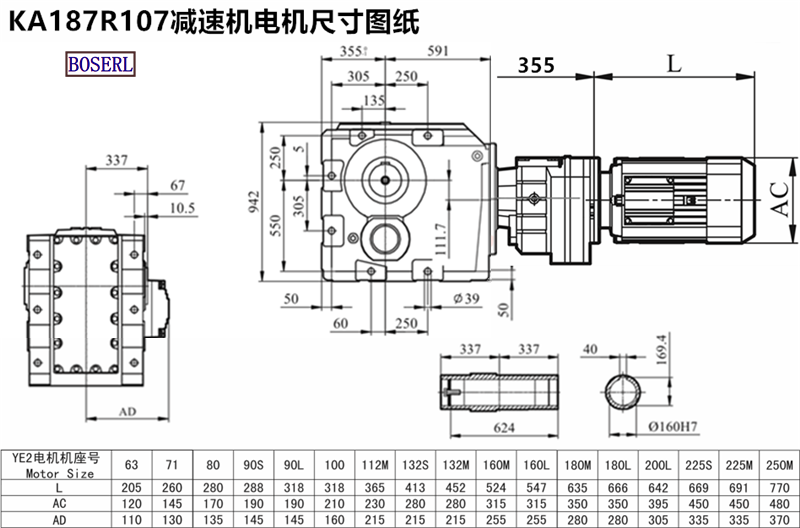

KA187BR107DM225S4Induction Motor 3Ph motors installed size drawings
Ka187 br107dm225s4 deviation power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 7. 5 kw for the electric wheel coil gear-reducing motor ka187 br107dm225s4 ka187br107drrs132l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA187BR107DM225S4减速机样本 |
|
| KA187BR107DM225S4减速机三维图纸 |
|
