KA57R37DM71D4Detailed Information
Keyword: 0. 18 kw power with a diameter arctic axle decelerator_ka57r37dm71d4_ka57r37drs80k4
KA57R37DM71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DM71D4 | 280 | 0.37KW | 4.90r/min | 630N.m | 46kg | 7350N | 0.95 |
| KA57R37DM71D4 | 246 | 0.37KW | 5.60r/min | 555N.m | 46kg | 7980N | 1.10 |
| KA57R37DM71D4 | 215 | 0.37KW | 6.40r/min | 490N.m | 46kg | 8460N | 1.20 |
| KA57R37DM71D4 | 192 | 0.37KW | 7.20r/min | 435N.m | 46kg | 8720N | 1.40 |
| KA57R37DM71D4 | 166 | 0.37KW | 8.30r/min | 375N.m | 46kg | 8980N | 1.60 |
| KA57R37DM71D4 | 129 | 0.37KW | 11.0r/min | 295N.m | 46kg | 9290N | 2.00 |
| KA57R37DM71D4 | 111 | 0.37KW | 12.0r/min | 250N.m | 46kg | 9460N | 2.40 |
| KA57R37DM71D4 | 97 | 0.37KW | 14.0r/min | 220N.m | 46kg | 9560N | 2.70 |
Ka57r37drs80k4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DRS80K4 | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KA57R37DRS80K4 | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KA57R37DRS80K4 | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KA57R37DRS80K4 | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KA57R37DRS80K4 | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KA57R37DRS80K4 | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KA57R37DM71D4Speeding machine type:
K57r37dm71d4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka57br37dm71d4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv57br37dm71d4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
The kh57br37dm71d4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf57r37dm71d4b5 installation of tilt gears - umbrella gear reduction power
Kaf57r37dm71d4b5 french aerocentric axles with tilt gears - umbrella gear reduction power
Kvf57r37dm71d4b5francocardial axis installed with tilt gears - an umbrella gear-reducing power plant
Khf57r37dm71d4b5franic axle locks fitted with tilt gears - umbrella gear reduction power
Ka57r37dm71d4 sky axis tilt gear - umbrella gear deviation engine
Kv57r37dm71d4 hole gears installed on the hollow axle - umbrella gear reduction power
Kh57r37dm71d4 empty axle locks slashing gears - umbrella gear deceleration power
The kt57r37dm71d4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz57r37dm71d4b14 french aerocentric axles with tilt gears - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing power units on the franberry axle
Dhz57r37dm71d4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

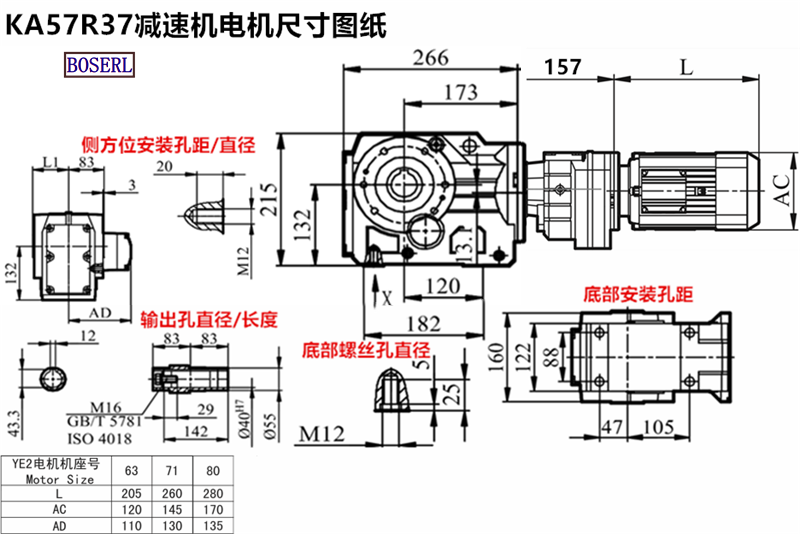

KA57R37DM71D4Induction Motor 3Ph motors installed size drawings
Ka57r37dm71d4 deviation power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
