KA57R37DV71MS4Detailed Information
Keyword: how much of a 75kw power can be used for a carnival decelerator _ka57r37dv71ms4_ka57r37drrn80k4
KA57R37DV71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DV71MS4 | 421 | 0.25KW | 3.10r/min | 665N.m | 45.5kg | 4200N | 0.90 |
| KA57R37DV71MS4 | 362 | 0.25KW | 3.60r/min | 590N.m | 45.5kg | 7690N | 1.00 |
| KA57R37DV71MS4 | 319 | 0.25KW | 4.10r/min | 520N.m | 45.5kg | 8260N | 1.15 |
| KA57R37DV71MS4 | 280 | 0.25KW | 4.60r/min | 440N.m | 45.5kg | 8680N | 1.35 |
| KA57R37DV71MS4 | 246 | 0.25KW | 5.30r/min | 390N.m | 45.5kg | 8920N | 1.55 |
| KA57R37DV71MS4 | 215 | 0.25KW | 6.00r/min | 345N.m | 45.5kg | 9110N | 1.75 |
| KA57R37DV71MS4 | 192 | 0.25KW | 6.80r/min | 305N.m | 45.5kg | 9260N | 1.95 |
| KA57R37DV71MS4 | 166 | 0.25KW | 7.80r/min | 265N.m | 45.5kg | 9410N | 2.30 |
| KA57R37DV71MS4 | 145 | 0.25KW | 9.00r/min | 230N.m | 45.5kg | 9530N | 2.60 |
| KA57R37DV71MS4 | 129 | 0.25KW | 10.0r/min | 210N.m | 45.5kg | 9600N | 2.80 |
| KA57R37DV71MS4 | 111 | 0.25KW | 12.0r/min | 178N.m | 45.5kg | 9700N | 3.40 |
| KA57R37DV71MS4 | 97 | 0.25KW | 13.0r/min | 156N.m | 45.5kg | 9770N | 3.80 |
KA57R37DRN80K4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA57R37DRN80K4 | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KA57R37DRN80K4 | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KA57R37DRN80K4 | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KA57R37DRN80K4 | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KA57R37DRN80K4 | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KA57R37DRN80K4 | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KA57R37DV71MS4Speeding machine type:
K57r37dv71ms4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka57br37dv71ms4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv57br37dv71ms4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh57br37dv71ms4-feed-emperular axe locker with tilt gear.Right-angle shaft reducer motor
Frf57r37dv71ms4b5 installation of tilt gear - umbrella gear reduction power
Kaf57r37dv71ms4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf57r37dv71ms4b5francocardiograms installed with tilt gears - umbrella gear-reducing power
Khf57r37dv71ms4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing power
Ka57r37dv71ms4 tilt gears - umbrella gear reduction power
Kv57r37dv71ms4 spaced axles with tilt gears - umbrella gear reduction power
Kh57r37dv71ms4 sky axes locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on the kt57r37dv71ms4 hollow axle - umbrella gear decelerator
Kaz57r37dv71ms4b14 installation of tilt gear - umbrella gear reduction power
Kvz57r37dv71ms4b14 installation of tilt gears - umbrella gear reduction power
Khz57r37dv71ms4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

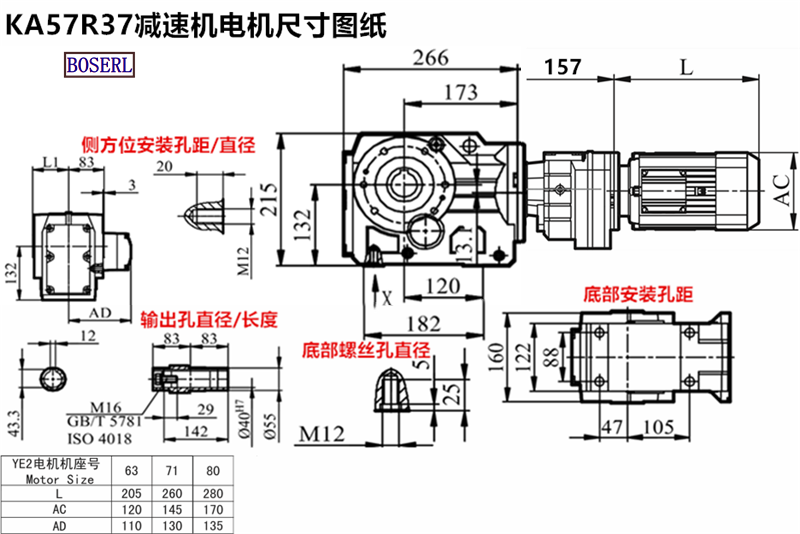

KA57R37DV71MS4Induction Motor 3Ph motors installed size drawings
Ka57r37dv71ms4 deviation electric power plant. please make an appointment three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
