KAF47DR100M4Detailed Information

prevnext

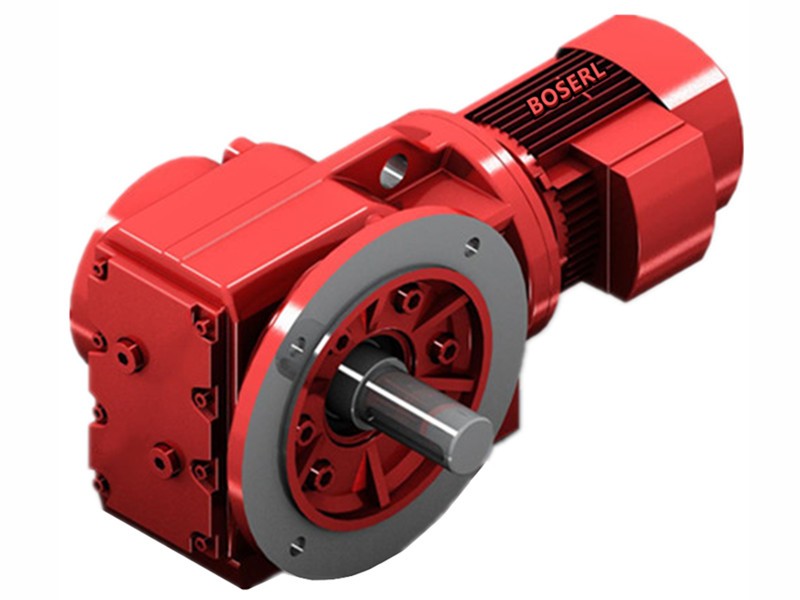

KAF47DR100M4

TEL：Email:[email protected]

详细信息

Keyword: 30 ton loader reduction machine_kaf47dr100m4_kaf47dve100m4

KAF47DR100M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF47DR100M4	19.58	3kw	72rpm	400N.m	43kg	4430N	1
KAF47DR100M4	16.86	3kw	83rpm	345N.m	43kg	4490N	1.1
KAF47DR100M4	15.86	3kw	88rpm	320N.m	43kg	4500N	1.15
KAF47DR100M4	13.65	3kw	103rpm	275N.m	43kg	4510N	1.3
KAF47DR100M4	12.19	3kw	115rpm	245N.m	43kg	4490N	1.4
KAF47DR100M4	11.77	3kw	119rpm	240N.m	43kg	4370N	1.15
KAF47DR100M4	10.56	3kw	133rpm	215N.m	43kg	4350N	1.3
KAF47DR100M4	9.1	3kw	154rpm	186N.m	43kg	4290N	1.5
KAF47DR100M4	8.56	3kw	164rpm	175N.m	43kg	4270N	1.55
KAF47DR100M4	7.36	3kw	190rpm	151N.m	43kg	4190N	1.65
KAF47DR100M4	6.58	3kw	213rpm	135N.m	43kg	4120N	1.8
KAF47DR100M4	5.81	3kw	241rpm	119N.m	43kg	4030N	1.95
KAF47DR100M4	4.64	3kw	302rpm	95N.m	43kg	3860N	2.2

KAF47DVE100M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF47DVE100M4	19.58	3kw	72rpm	400N.m	43kg	4430N	1
KAF47DVE100M4	16.86	3kw	83rpm	345N.m	43kg	4490N	1.1
KAF47DVE100M4	15.86	3kw	88rpm	320N.m	43kg	4500N	1.15
KAF47DVE100M4	13.65	3kw	103rpm	275N.m	43kg	4510N	1.3
KAF47DVE100M4	12.19	3kw	115rpm	245N.m	43kg	4490N	1.4
KAF47DVE100M4	11.77	3kw	119rpm	240N.m	43kg	4370N	1.15
KAF47DVE100M4	10.56	3kw	133rpm	215N.m	43kg	4350N	1.3
KAF47DVE100M4	9.1	3kw	154rpm	186N.m	43kg	4290N	1.5
KAF47DVE100M4	8.56	3kw	164rpm	175N.m	43kg	4270N	1.55
KAF47DVE100M4	7.36	3kw	190rpm	151N.m	43kg	4190N	1.65
KAF47DVE100M4	6.58	3kw	213rpm	135N.m	43kg	4120N	1.8
KAF47DVE100M4	5.81	3kw	241rpm	119N.m	43kg	4030N	1.95
KAF47DVE100M4	4.64	3kw	302rpm	95N.m	43kg	3860N	2.2

KAF47DR100M4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

KAF47DR100M4Induction Motor 3Ph motors installed size drawings

KAF47DR100M4At thereducing plant: three days in advance

Gear with motorPresentation of application cases:

Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor

KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox

KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW

标签: 30 tons of loader speed-reducing machine kaf47dr100m4 kaf47dve100m4

tags： 30 tons of loader speed-reducing machine kaf47dr100m4 kaf47dve100m4
