KAF77DV90M4Detailed Information

prevnext

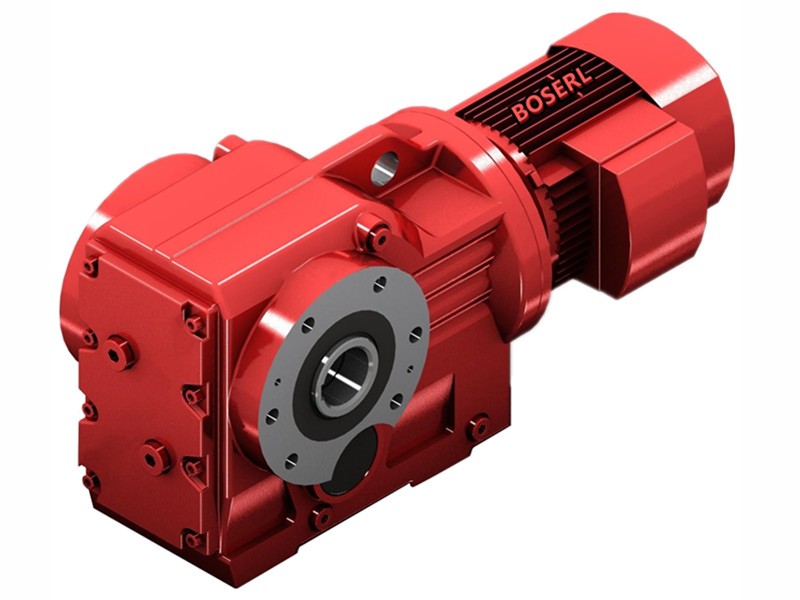

KAF77DV90M4

TEL：Email:[email protected]

详细信息

Keywords: 79 tons of flip-digger reduction

KAF77DV90M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF77DV90M4	135.28	1.5KW	10rpm	1380N.m	72Kg	16500N	1.1
KAF77DV90M4	128.52	1.5KW	11rpm	1310N.m	72Kg	16800N	1.2
KAF77DV90M4	113.56	1.5KW	12rpm	1160N.m	72Kg	17600N	1.35
KAF77DV90M4	97.05	1.5KW	15rpm	990N.m	72Kg	18300N	1.55
KAF77DV90M4	88.97	1.5KW	16rpm	910N.m	72Kg	18600N	1.7
KAF77DV90M4	78.07	1.5KW	18rpm	795N.m	72Kg	19000N	1.95
KAF77DV90M4	73.99	1.5KW	19rpm	755N.m	72Kg	19100N	2
KAF77DV90M4	64.75	1.5KW	22rpm	660N.m	72Kg	19400N	2.3
KAF77DV90M4	58.34	1.5KW	24rpm	595N.m	72Kg	19500N	2.6
KAF77DV90M4	51.18	1.5KW	27rpm	520N.m	72Kg	19700N	3
KAF77DV90M4	45.16	1.5KW	31rpm	460N.m	72Kg	19800N	3.4
KAF77DV90M4	40.04	1.5KW	35rpm	405N.m	72Kg	19800N	3.8

KAF77DVE90M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF77DVE90M4	135.28	1.5KW	10rpm	1380N.m	72Kg	16500N	1.1
KAF77DVE90M4	128.52	1.5KW	11rpm	1310N.m	72Kg	16800N	1.2
KAF77DVE90M4	113.56	1.5KW	12rpm	1160N.m	72Kg	17600N	1.35
KAF77DVE90M4	97.05	1.5KW	15rpm	990N.m	72Kg	18300N	1.55
KAF77DVE90M4	88.97	1.5KW	16rpm	910N.m	72Kg	18600N	1.7
KAF77DVE90M4	78.07	1.5KW	18rpm	795N.m	72Kg	19000N	1.95
KAF77DVE90M4	73.99	1.5KW	19rpm	755N.m	72Kg	19100N	2
KAF77DVE90M4	64.75	1.5KW	22rpm	660N.m	72Kg	19400N	2.3
KAF77DVE90M4	58.34	1.5KW	24rpm	595N.m	72Kg	19500N	2.6
KAF77DVE90M4	51.18	1.5KW	27rpm	520N.m	72Kg	19700N	3
KAF77DVE90M4	45.16	1.5KW	31rpm	460N.m	72Kg	19800N	3.4
KAF77DVE90M4	40.04	1.5KW	35rpm	405N.m	72Kg	19800N	3.8

KAF77DV90M4Speeding machine type:

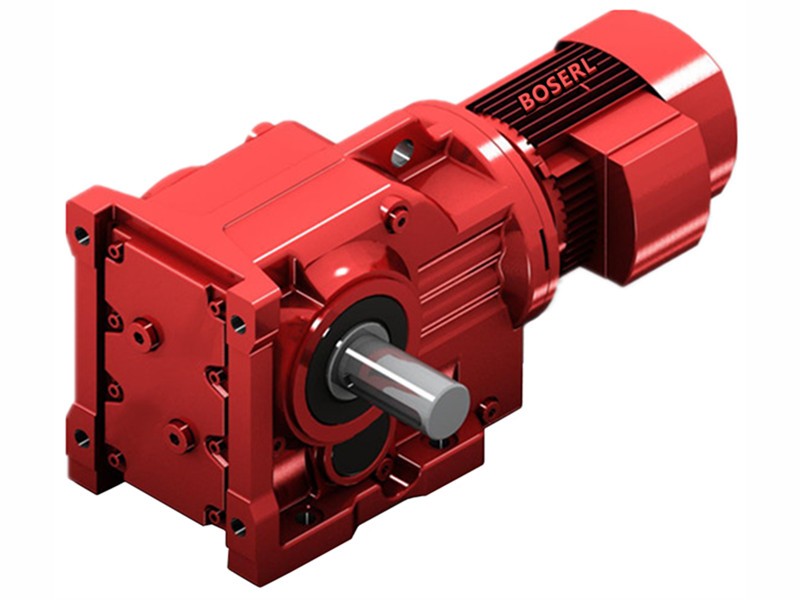

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

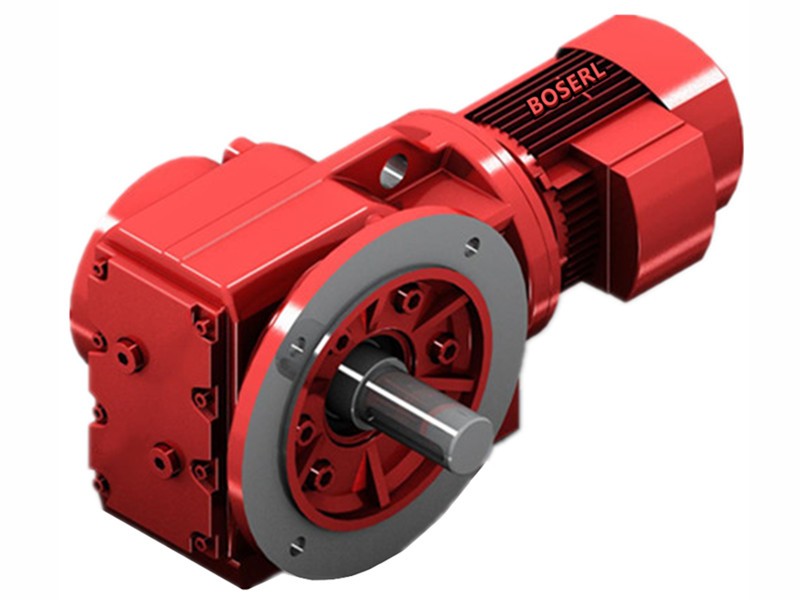

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

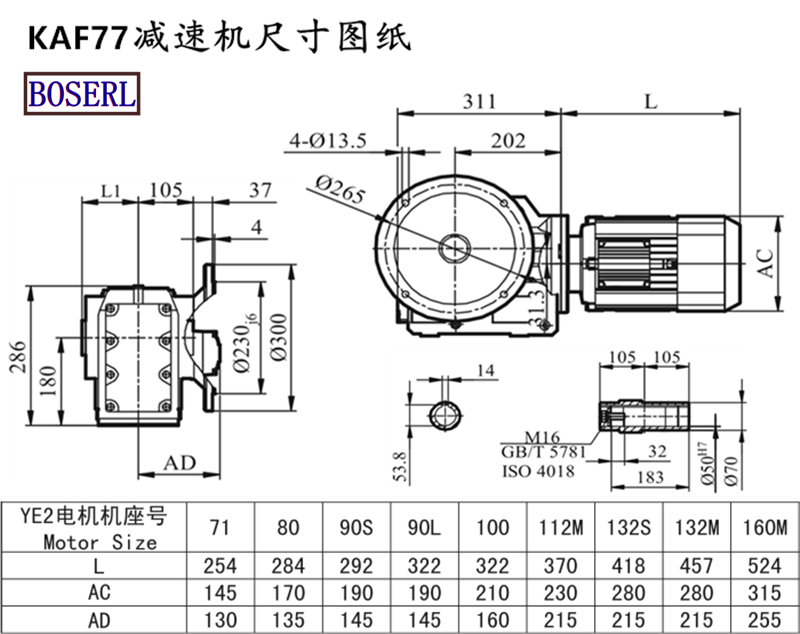

KAF77DV90M4Induction Motor 3Ph motors installed size drawings

KAF77DV90M4At thereducing plant: three days in advance

Gear with motorPresentation of application cases:

Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor

KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox

KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
