KAF87R57DM71D4Detailed Information

KAF87R57DM71D4
prevnext

KAF87R57DM71D4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 30kw with what hollowreducing machine _kaf87r57dm71d4_kaf87r57drrs63s4

KAF87R57DM71D4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KAF87R57DM71D414150.37KW0.97r/min3250N.m113.5kg26500N0.85
KAF87R57DM71D412290.37KW1.10r/min2820N.m113.5kg27100N0.95
KAF87R57DM71D410780.37KW1.30r/min2460N.m113.5kg27600N1.10
KAF87R57DM71D49510.37KW1.40r/min2140N.m113.5kg27900N1.25
KAF87R57DM71D48370.37KW1.60r/min1870N.m113.5kg28200N1.45
KAF87R57DM71D47260.37KW1.90r/min1620N.m113.5kg28400N1.65
KAF87R57DM71D46380.37KW2.20r/min1440N.m113.5kg28500N1.85
KAF87R57DM71D45620.37KW2.50r/min1250N.m113.5kg28600N2.20
KAF87R57DM71D44740.37KW2.90r/min1050N.m113.5kg28800N2.60
KAF87R57DM71D44260.37KW3.20r/min950N.m113.5kg28800N2.80
KAF87R57DM71D43730.37KW3.70r/min830N.m113.5kg28900N3.20

Kaf87r57drrs63s4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KAF87R57DRS63S452400.12KW0.26r/min3470N.m108.5kg26200N0.80
KAF87R57DRS63S445620.12KW0.30r/min2890N.m108.5kg27000N0.95
KAF87R57DRS63S440370.12KW0.34r/min2680N.m108.5kg27300N1.00
KAF87R57DRS63S436090.12KW0.38r/min2390N.m108.5kg27600N1.15
KAF87R57DRS63S431070.12KW0.44r/min2060N.m108.5kg28000N1.30
KAF87R57DRS63S427280.12KW0.51r/min1730N.m108.5kg28300N1.55
KAF87R57DRS63S423710.12KW0.58r/min1530N.m108.5kg28400N1.75
KAF87R57DRS63S420880.12KW0.66r/min1430N.m108.5kg28500N1.90
KAF87R57DRS63S418540.12KW0.74r/min1270N.m108.5kg28600N2.10
KAF87R57DRS63S416570.12KW0.83r/min1130N.m108.5kg28700N2.40
KAF87R57DRS63S414150.12KW0.97r/min960N.m108.5kg28800N2.80
KAF87R57DRS63S412290.12KW1.10r/min830N.m108.5kg28900N3.20
KAF87R57DRS63S410780.12KW1.30r/min720N.m108.5kg28900N3.70
KAF87R57DRS63S49510.12KW1.40r/min610N.m108.5kg29000N4.40
KAF87R57DRS63S48370.12KW1.60r/min520N.m108.5kg29000N5.20
KAF87R57DRS63S47260.12KW1.90r/min450N.m108.5kg29000N5.90

KAF87R57DM71D4Speeding machine type:

K87r57dm71d4 bottom foot with tilt gear - umbrella gear deviation engine

Ka87br57dm71d4 foot hollow axis with tilt gear - umbrella gear-reducing power

Kv87br57dm71d4 foot larvae axis installed with tilt gears - umbrella gear reduction power

Kh87br57dm71d4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf87r57dm71d4b5 installation of tilt gears - umbrella gear reduction power

Kaf87r57dm71d4b5 french aerocentric axles equipped with tilt gears - umbrella gear-reducing motors

Kvf87r57dm71d4b5francocardiograms installed with tilt gears - umbrella gear reduction power

Khf87r57dm71d4b5farland axle locks with tilt gears - an umbrella gear-reducing motor

Ka87r57dm71d4 hollow axle slash gears - an umbrella gear reduction power

Kv87r57dm71d4 spaced axles with tilt gears - umbrella gear-reducing power

Kh87r57dm71d4 sky axe locked tilt gear - umbrella gear deviation engine

The kt87r57dm71d4 hollow axle is equipped with tilt gears - an umbrella gear decelerator

Kaz87r57dm71d4b14 french aerocentric axles with tilt gears - an umbrella gear reduction power

Installation of tilt gears - an umbrella gear-reducing power plant - on the flannel core axis of kvz87r57dm71d4b14

Khz87r57dm71d4b14 french axle locks with tilt gears - umbrella gear reduction power

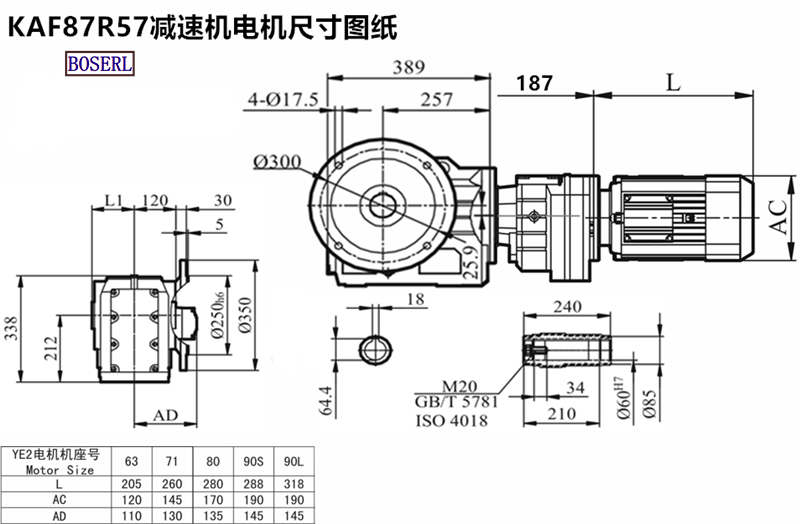

KAF87R57DM71D4Induction Motor 3Ph motors installed size drawings



Kaf87r57dm71d4 power plant, three days in advanceGear with motor

Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor

KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox

KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
