Kf37 deviatorsDetailed Information
Keyword: kf37 deviators_kf37y80m4_kf37y90m4_kf37 deviators_kf37y100m4_kf37 deviators producer
KF37Y100M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF37Y100M4 | 8.91 | 3KW | 157rpm | 182N.m | 37kg | 2000N | 0.9 |
| KF37Y100M4 | 7.96 | 3KW | 176rpm | 163N.m | 37kg | 2040N | 0.95 |
| KF37Y100M4 | 6.8 | 3KW | 206rpm | 139N.m | 37kg | 2080N | 1.1 |
| KF37Y100M4 | 6.37 | 3KW | 220rpm | 130N.m | 37kg | 2080N | 1.1 |
| KF37Y100M4 | 5.36 | 3KW | 261rpm | 110N.m | 37kg | 2090N | 1.3 |
| KF37Y100M4 | 3.98 | 3KW | 352rpm | 81N.m | 37kg | 2050N | 1.55 |
Kf37y80m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF37Y80M4 | 29.96 | 1.1KW | 47rpm | 220N.m | 25kg | 3420N | 0.9 |
| KF37Y80M4 | 24.99 | 1.1KW | 56rpm | 186N.m | 25kg | 3440N | 1.05 |
| KF37Y80M4 | 23.36 | 1.1KW | 60rpm | 174N.m | 25kg | 3440N | 1.1 |
| KF37Y80M4 | 20.19 | 1.1KW | 70rpm | 150N.m | 25kg | 3410N | 1.25 |
| KF37Y80M4 | 17.15 | 1.1KW | 82rpm | 128N.m | 25kg | 3370N | 1.4 |
| KF37Y80M4 | 15.31 | 1.1KW | 92rpm | 114N.m | 25kg | 3320N | 1.55 |
| KF37Y80M4 | 13.08 | 1.1KW | 108rpm | 98N.m | 25kg | 3250N | 1.7 |
| KF37Y80M4 | 12.14 | 1.1KW | 116rpm | 90N.m | 25kg | 3220N | 1.75 |
| KF37Y80M4 | 10.49 | 1.1KW | 134rpm | 78N.m | 25kg | 3140N | 2 |
| KF37Y80M4 | 8.91 | 1.1KW | 158rpm | 66N.m | 25kg | 3040N | 2.4 |
| KF37Y80M4 | 7.96 | 1.1KW | 177rpm | 59N.m | 25kg | 2970N | 2.6 |
| KF37Y80M4 | 6.8 | 1.1KW | 207rpm | 51N.m | 25kg | 2870N | 3 |
| KF37Y80M4 | 6.37 | 1.1KW | 221rpm | 47N.m | 25kg | 2820N | 3.1 |
| KF37Y80M4 | 5.36 | 1.1KW | 263rpm | 40N.m | 25kg | 2710N | 3.5 |
| KF37Y80M4 | 3.98 | 1.1KW | 354rpm | 30N.m | 25kg | 2510N | 4.2 |
Kf37y90m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF37Y90M4 | 13.08 | 2.2KW | 107rpm | 196N.m | 31kg | 2360N | 0.85 |
| KF37Y90M4 | 10.49 | 2.2KW | 133rpm | 157N.m | 31kg | 2430N | 1 |
| KF37Y90M4 | 8.91 | 2.2KW | 157rpm | 134N.m | 31kg | 2440N | 1.2 |
| KF37Y90M4 | 7.96 | 2.2KW | 176rpm | 119N.m | 31kg | 2430N | 1.3 |
| KF37Y90M4 | 6.8 | 2.2KW | 206rpm | 102N.m | 31kg | 2410N | 1.45 |
| KF37Y90M4 | 6.37 | 2.2KW | 220rpm | 96N.m | 31kg | 2400N | 1.5 |
| KF37Y90M4 | 5.36 | 2.2KW | 261rpm | 80N.m | 31kg | 2350N | 1.75 |
| KF37Y90M4 | 3.98 | 2.2KW | 352rpm | 60N.m | 31kg | 2250N | 2.1 |
Type of kf37 retrenchor:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

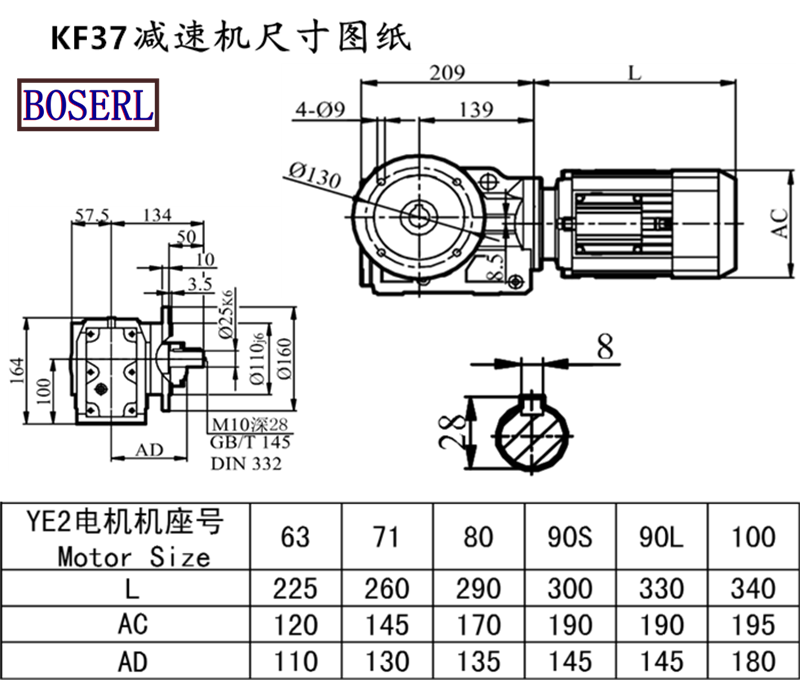

Installation of size drawings for the kf37 power decelerator
Showcasing of kf37 power-reducing plant: three days' reservation for the factory
Micro move motorPresentation of application cases:
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
