KF67R37DVE63L4Detailed Information
Keyword: 3. 7 kw for an electric umbrella gear-retarder_kf67r37dve63l4_kf67r37dre80mk4
KF67R37DVE63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DVE63L4 | 793 | 0.18KW | 1.70r/min | 920N.m | 47.5kg | 9240N | 0.90 |
| KF67R37DVE63L4 | 697 | 0.18KW | 1.90r/min | 760N.m | 47.5kg | 10800N | 1.05 |
| KF67R37DVE63L4 | 613 | 0.18KW | 2.20r/min | 670N.m | 47.5kg | 11500N | 1.20 |
| KF67R37DVE63L4 | 542 | 0.18KW | 2.40r/min | 590N.m | 47.5kg | 12000N | 1.40 |
| KF67R37DVE63L4 | 471 | 0.18KW | 2.80r/min | 535N.m | 47.5kg | 12200N | 1.50 |
| KF67R37DVE63L4 | 420 | 0.18KW | 3.20r/min | 455N.m | 47.5kg | 12600N | 1.80 |
| KF67R37DVE63L4 | 361 | 0.18KW | 3.60r/min | 405N.m | 47.5kg | 12800N | 2.00 |
| KF67R37DVE63L4 | 323 | 0.18KW | 4.10r/min | 360N.m | 47.5kg | 12900N | 2.30 |
| KF67R37DVE63L4 | 279 | 0.18KW | 4.70r/min | 300N.m | 47.5kg | 13000N | 2.70 |
Kf67r37dre80mk4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DRE80MK4 | 279 | 0.55KW | 5.00r/min | 950N.m | 56.5kg | 7650N | 0.85 |
| KF67R37DRE80MK4 | 246 | 0.55KW | 5.60r/min | 840N.m | 56.5kg | 10100N | 0.95 |
| KF67R37DRE80MK4 | 217 | 0.55KW | 6.40r/min | 745N.m | 56.5kg | 10900N | 1.10 |
| KF67R37DRE80MK4 | 191 | 0.55KW | 7.20r/min | 655N.m | 56.5kg | 11600N | 1.25 |
KF67R37DVE63L4Speeding machine type:
K67r37dve63l4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka67br37dve63l4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv67br37dve63l4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing power
Kh67br37dve63l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf67r37dve63l4b5 installation of tilt gear - umbrella gear-reducing power
Kaf67r37dve63l4b5farland aerocentric axis is equipped with tilt gears - umbrella gear-reducing power
Kvf67r37dve63l4b5franco-axis with tilt gears - umbrella gear deviation electric
Khf67r37dve63l4b5farland axle locks with tilt gears - an umbrella gear-reducing motor
Ka67r37dve63l4 hollow axial tilt gears - an umbrella gear reduction power
Kv67r37dve63l4 spaced axles with tilt gears - umbrella gear reduction power
Kh67r37dve63l4 empty axle locks slashing gears - umbrella gear-reducing power
The kt67r37dve63l4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz67r37dve63l4b14 french aerocentric axis with tilt gears - an umbrella gear reduction power
Installation of tilt gear - umbrella gear deviation electrics on the franco axes
Khz67r37dve63l4b14faran axle locks equipped with tilt gears - umbrella gear-reducing power

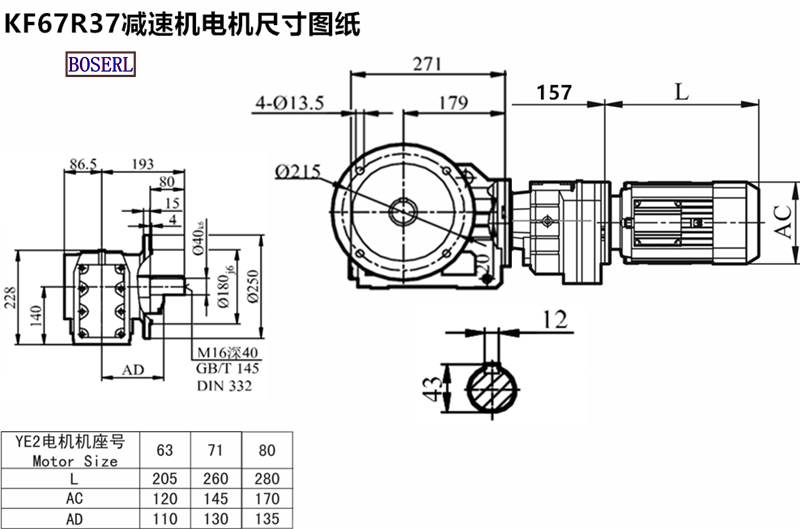

KF67R37DVE63L4Induction Motor 3Ph motors installed size drawings
Kf67r37dve63l4 deviation electric power plant, three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
