RF27DR71M4Detailed Information

RF27DR71M4
prevnext

RF27DR71M4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 15kw220vreducing machine_ rf27dr71m4_rf27dve71m4

RF27DR71M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF27DR71M461.300.37KW23.0rpm157N.m16kg3870N
0.85
RF27DR71M455.870.37KW25.0rpm143N.m16kg3800N0.90
RF27DR71M448.170.37KW29.0rpm123N.m16kg3680N1.05
RF27DR71M444.900.37KW31.0rpm115N.m16kg3620N1.15
RF27DR71M439.250.37KW35.0rpm100N.m16kg3510N1.30
RF27DR71M436.790.37KW38.0rpm94N.m16kg3460N1.40
RF27DR71M432.470.37KW42.0rpm83N.m16kg3350N1.55
RF27DR71M428.780.37KW48.0rpm74N.m16kg3250N1.75
RF27DR71M424.470.37KW56.0rpm63N.m16kg3110N2.10
RF27DR71M428.370.37KW49.0rpm73N.m16kg3240N1.80
RF27DR71M426.090.37KW53.0rpm67N.m16kg3170N1.95
RF27DR71M422.320.37KW62.0rpm57N.m16kg3040N2.30
RF27DR71M419.350.37KW71.0rpm50N.m16kg2920N2.60
RF27DR71M418.080.37KW76.0rpm46N.m16kg2860N2.80
RF27DR71M415.630.37KW88.0rpm40N.m16kg2750N3.20
RF27DR71M413.280.37KW104rpm34N.m16kg2620N3.80

Rf27dve71m4 deviation motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF27DVE71M461.300.37KW23.0rpm157N.m16kg3870N
0.85
RF27DVE71M455.870.37KW25.0rpm143N.m16kg3800N0.90
RF27DVE71M448.170.37KW29.0rpm123N.m16kg3680N1.05
RF27DVE71M444.900.37KW31.0rpm115N.m16kg3620N1.15
RF27DVE71M439.250.37KW35.0rpm100N.m16kg3510N1.30
RF27DVE71M436.790.37KW38.0rpm94N.m16kg3460N1.40
RF27DVE71M432.470.37KW42.0rpm83N.m16kg3350N1.55
RF27DVE71M428.780.37KW48.0rpm74N.m16kg3250N1.75
RF27DVE71M424.470.37KW56.0rpm63N.m16kg3110N2.10
RF27DVE71M428.370.37KW49.0rpm73N.m16kg3240N1.80
RF27DVE71M426.090.37KW53.0rpm67N.m16kg3170N1.95
RF27DVE71M422.320.37KW62.0rpm57N.m16kg3040N2.30
RF27DVE71M419.350.37KW71.0rpm50N.m16kg2920N2.60
RF27DVE71M418.080.37KW76.0rpm46N.m16kg2860N2.80
RF27DVE71M415.630.37KW88.0rpm40N.m16kg2750N3.20
RF27DVE71M413.280.37KW104rpm34N.m16kg2620N3.80

Rf27dr71m4 gear deviator motorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

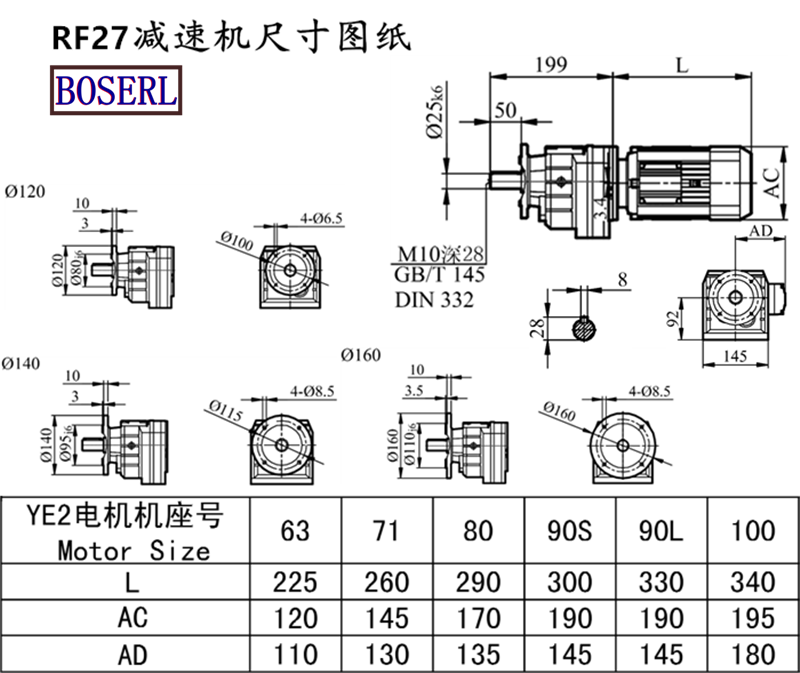

Rf27dr71m4 gear deviator motorInstall size drawings

1540286903241612.pngHorizontal reducer.png

Rf27dr71m4 gear deviator motorProduction plant display: three days' appointment for the factory

Vertical reducerPresentation of application cases:

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
