RF57R37DRE71MS4Detailed Information
Keyword: 0. 55 kw electric power with an oscillator _ rf57r37drre71ms4_rf57r37dr63m4
RF57R37DRE71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DRE71MS4 | 319 | 0.25KW | 4.10r/min | 515N.m | 36.5kg | 6050N | 0.85 |
| RF57R37DRE71MS4 | 273 | 0.25KW | 4.80r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DRE71MS4 | 241 | 0.25KW | 5.40r/min | 380N.m | 36.5kg | 7380N | 1.20 |
| RF57R37DRE71MS4 | 215 | 0.25KW | 6.00r/min | 340N.m | 36.5kg | 7510N | 1.30 |
| RF57R37DRE71MS4 | 187 | 0.25KW | 7.00r/min | 300N.m | 36.5kg | 7630N | 1.50 |
| RF57R37DRE71MS4 | 164 | 0.25KW | 7.90r/min | 260N.m | 36.5kg | 7730N | 1.75 |
| RF57R37DRE71MS4 | 142 | 0.25KW | 9.20r/min | 225N.m | 36.5kg | 7800N | 2.00 |
| RF57R37DRE71MS4 | 324 | 0.25KW | 4.00r/min | 540N.m | 36.5kg | 4980N | 0.85 |
| RF57R37DRE71MS4 | 290 | 0.25KW | 4.50r/min | 480N.m | 36.5kg | 6950N | 0.95 |
| RF57R37DRE71MS4 | 262 | 0.25KW | 5.00r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DRE71MS4 | 246 | 0.25KW | 5.30r/min | 405N.m | 36.5kg | 7280N | 1.10 |
| RF57R37DRE71MS4 | 220 | 0.25KW | 5.90r/min | 360N.m | 36.5kg | 7440N | 1.25 |
RF57R37DR63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DR63M4 | 782 | 0.12KW | 1.80r/min | 550N.m | 32kg | 4650N | 0.80 |
| RF57R37DR63M4 | 678 | 0.12KW | 2.00r/min | 455N.m | 32kg | 7070N | 1.00 |
| RF57R37DR63M4 | 604 | 0.12KW | 2.30r/min | 410N.m | 32kg | 7260N | 1.10 |
| RF57R37DR63M4 | 537 | 0.12KW | 2.60r/min | 370N.m | 32kg | 7400N | 1.20 |
| RF57R37DR63M4 | 471 | 0.12KW | 2.90r/min | 325N.m | 32kg | 7550N | 1.35 |
| RF57R37DR63M4 | 357 | 0.12KW | 3.90r/min | 240N.m | 32kg | 7760N | 1.85 |
| RF57R37DR63M4 | 319 | 0.12KW | 4.30r/min | 215N.m | 32kg | 7820N | 2.10 |
| RF57R37DR63M4 | 359 | 0.12KW | 3.80r/min | 255N.m | 32kg | 7730N | 1.75 |
| RF57R37DR63M4 | 324 | 0.12KW | 4.30r/min | 230N.m | 32kg | 7790N | 1.95 |
| RF57R37DR63M4 | 290 | 0.12KW | 4.80r/min | 200N.m | 32kg | 7840N | 2.20 |
| RF57R37DR63M4 | 262 | 0.12KW | 5.30r/min | 185N.m | 32kg | 7880N | 2.40 |
| RF57R37DR63M4 | 246 | 0.12KW | 5.60r/min | 170N.m | 32kg | 7900N | 2.60 |
| RF57R37DR63M4 | 220 | 0.12KW | 6.30r/min | 150N.m | 32kg | 7930N | 3.00 |
Rf57r37dre71ms4reducing motorsType:
Rx57r37drre71ms4 electricly motorized single-step bottom foot installation of tilt gear-reducing power
Rxf57r37dre71ms4 electric motion single level b5flMotor geared reducer
R57r37drre71ms4 electric motor base foot installation of tilt gear reduction power
R57fr37drre71ms4 motor base, b5franc installation of tilt gear-reducing power
Rf57r37drre71ms4 electric motor b5 frf5 installation of tilt gear reduction power
Rz57r37drre71ms4 electric motor b14 flang installation of tilt gear reduction power

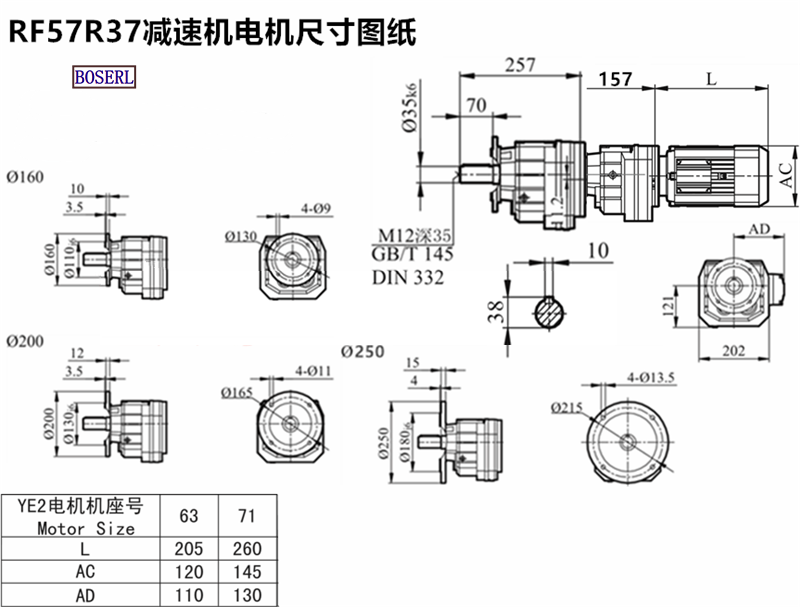

Rf57r37dre71ms4reducing motorsInstall size drawings
Rf57r37dre71ms4 power-reducing plantStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
