RF57R37DVE71M4Detailed Information
Keywords: 0. 75 kw power with an oscillator _ rf57r37dve71m4_rf57r37dre63m4
RF57R37DVE71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DVE71M4 | 319 | 0.25KW | 4.10r/min | 515N.m | 36.5kg | 6050N | 0.85 |
| RF57R37DVE71M4 | 273 | 0.25KW | 4.80r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DVE71M4 | 241 | 0.25KW | 5.40r/min | 380N.m | 36.5kg | 7380N | 1.20 |
| RF57R37DVE71M4 | 215 | 0.25KW | 6.00r/min | 340N.m | 36.5kg | 7510N | 1.30 |
| RF57R37DVE71M4 | 187 | 0.25KW | 7.00r/min | 300N.m | 36.5kg | 7630N | 1.50 |
| RF57R37DVE71M4 | 164 | 0.25KW | 7.90r/min | 260N.m | 36.5kg | 7730N | 1.75 |
| RF57R37DVE71M4 | 142 | 0.25KW | 9.20r/min | 225N.m | 36.5kg | 7800N | 2.00 |
| RF57R37DVE71M4 | 324 | 0.25KW | 4.00r/min | 540N.m | 36.5kg | 4980N | 0.85 |
| RF57R37DVE71M4 | 290 | 0.25KW | 4.50r/min | 480N.m | 36.5kg | 6950N | 0.95 |
| RF57R37DVE71M4 | 262 | 0.25KW | 5.00r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DVE71M4 | 246 | 0.25KW | 5.30r/min | 405N.m | 36.5kg | 7280N | 1.10 |
| RF57R37DVE71M4 | 220 | 0.25KW | 5.90r/min | 360N.m | 36.5kg | 7440N | 1.25 |
RF57R37DRE63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DRE63M4 | 782 | 0.12KW | 1.80r/min | 550N.m | 32kg | 4650N | 0.80 |
| RF57R37DRE63M4 | 678 | 0.12KW | 2.00r/min | 455N.m | 32kg | 7070N | 1.00 |
| RF57R37DRE63M4 | 604 | 0.12KW | 2.30r/min | 410N.m | 32kg | 7260N | 1.10 |
| RF57R37DRE63M4 | 537 | 0.12KW | 2.60r/min | 370N.m | 32kg | 7400N | 1.20 |
| RF57R37DRE63M4 | 471 | 0.12KW | 2.90r/min | 325N.m | 32kg | 7550N | 1.35 |
| RF57R37DRE63M4 | 357 | 0.12KW | 3.90r/min | 240N.m | 32kg | 7760N | 1.85 |
| RF57R37DRE63M4 | 319 | 0.12KW | 4.30r/min | 215N.m | 32kg | 7820N | 2.10 |
| RF57R37DRE63M4 | 359 | 0.12KW | 3.80r/min | 255N.m | 32kg | 7730N | 1.75 |
| RF57R37DRE63M4 | 324 | 0.12KW | 4.30r/min | 230N.m | 32kg | 7790N | 1.95 |
| RF57R37DRE63M4 | 290 | 0.12KW | 4.80r/min | 200N.m | 32kg | 7840N | 2.20 |
| RF57R37DRE63M4 | 262 | 0.12KW | 5.30r/min | 185N.m | 32kg | 7880N | 2.40 |
| RF57R37DRE63M4 | 246 | 0.12KW | 5.60r/min | 170N.m | 32kg | 7900N | 2.60 |
| RF57R37DRE63M4 | 220 | 0.12KW | 6.30r/min | 150N.m | 32kg | 7930N | 3.00 |
Rf57r37dve71m4 deviation electricalType:
Rx57r37dve71m4 electric motor single-step bottom foot installation of tilt gear decelerators
Rxf57r37dve71m4 power drive single level b5 franMotor geared reducer
R57r37dve71m4 electric motor base foot installation of tilt gear reduction power
R57fr37dve71m4 motor base forreducing machines, and b5franc installation of tilt gear-reducing motors
Rf57r37dve71m4 power-motion b5fl
Rz57r37dve71m4 deviation engine b14frand installation of tilt gear deviation engine

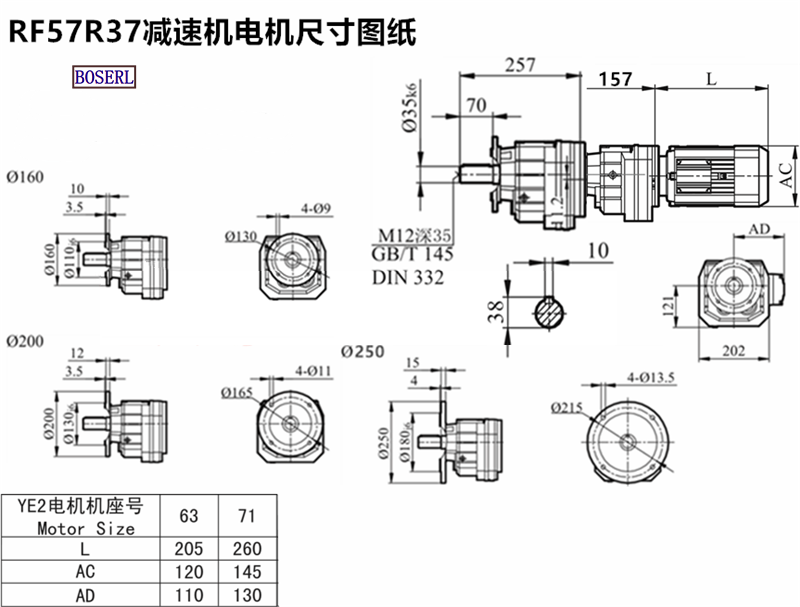

Rf57r37dve71m4 deviation electricalInstall size drawings
Rf57r37dve71m4 deviation electric power plantStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
