SA97DRS90S4Detailed Information
Keyword: 30 kilowatt-reducing power unit _sa97drs90s4_sa97dt90s4
SA97DRS90S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA97DRS90S4 | 824 | 1.1KW | 1.70rpm | 4700N.m | 190kg | 23500N | 0.90 |
| SA97DRS90S4 | 714 | 1.1KW | 2.00rpm | 3360N.m | 190kg | 34400N | 1.25 |
| SA97DRS90S4 | 626 | 1.1KW | 2.30rpm | 3570N.m | 190kg | 34000N | 1.15 |
| SA97DRS90S4 | 538 | 1.1KW | 2.60rpm | 3070N.m | 190kg | 34800N | 1.35 |
| SA97DRS90S4 | 484 | 1.1KW | 2.90rpm | 2780N.m | 190kg | 35300N | 1.50 |
| SA97DRS90S4 | 420 | 1.1KW | 3.40rpm | 2410N.m | 190kg | 35700N | 1.75 |
SA97DT90S4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA97DT90S4 | 824 | 1.1KW | 1.70rpm | 4700N.m | 190kg | 23500N | 0.90 |
| SA97DT90S4 | 714 | 1.1KW | 2.00rpm | 3360N.m | 190kg | 34400N | 1.25 |
| SA97DT90S4 | 626 | 1.1KW | 2.30rpm | 3570N.m | 190kg | 34000N | 1.15 |
| SA97DT90S4 | 538 | 1.1KW | 2.60rpm | 3070N.m | 190kg | 34800N | 1.35 |
| SA97DT90S4 | 484 | 1.1KW | 2.90rpm | 2780N.m | 190kg | 35300N | 1.50 |
| SA97DT90S4 | 420 | 1.1KW | 3.40rpm | 2410N.m | 190kg | 35700N | 1.75 |
Sa97drs90s4 gearboxType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

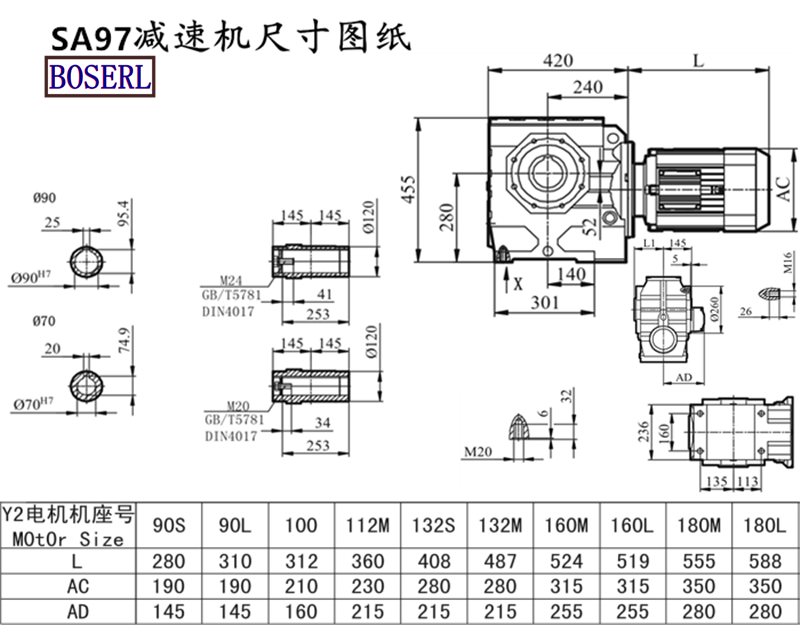

Sa97drs90s4 gearboxInstall size drawings
Sa97drs90s4 gearboxProduction plant display: three days' appointment for the factory
Level-IIreducing machinePresentation of application cases:
Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor
SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer
SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: 30 kilowatt-free speed-reducing unit sa97drs90s4 sa97dt90s4
- 上一条SA97DV90S4
- 下一条SA97DR90M4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SA97DRS90S4减速机样本 |
|
| SA97DRS90S4减速机三维图纸 |
|
