Saf 87 gear-down box electric unitDetailed Information
Keyword: saf87 gear deviation box electric unit _saf87y132m4_saf87y160m4_saf87 gear deviation box _saf87 gear deviation box _ saf87 gear deviation unit saf 87 gear-retarder
SAF87Y132M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF87Y132M4 | 77.14 | 5.5KW | 19.0rpm | 2160N.m | 160kg | 28200N | 0.85 |
| SAF87Y132M4 | 57.00 | 5.5KW | 26.0rpm | 1810N.m | 160kg | 28700N | 0.90 |
| SAF87Y132M4 | 47.91 | 5.5KW | 30.0rpm | 1530N.m | 160kg | 29100N | 1.05 |
| SAF87Y132M4 | 64.00 | 5.5KW | 23.0rpm | 1810N.m | 160kg | 28700N | 0.95 |
| SAF87Y132M4 | 44.03 | 5.5KW | 33.0rpm | 1410N.m | 160kg | 29200N | 1.15 |
| SAF87Y132M4 | 39.10 | 5.5KW | 37.0rpm | 1260N.m | 160kg | 29100N | 1.25 |
| SAF87Y132M4 | 34.96 | 5.5KW | 42.0rpm | 1130N.m | 160kg | 28500N | 1.40 |
| SAF87Y132M4 | 31.43 | 5.5KW | 46.0rpm | 1020N.m | 160kg | 27900N | 1.55 |
| SAF87Y132M4 | 27.28 | 5.5KW | 53.0rpm | 890N.m | 160kg | 27100N | 1.80 |
| SAF87Y132M4 | 25.50 | 5.5KW | 57.0rpm | 850N.m | 160kg | 25200N | 1.45 |
| SAF87Y132M4 | 21.43 | 5.5KW | 68.0rpm | 715N.m | 160kg | 24400N | 1.70 |
| SAF87Y132M4 | 19.70 | 5.5KW | 74.0rpm | 660N.m | 160kg | 24000N | 1.85 |
| SAF87Y132M4 | 17.49 | 5.5KW | 83.0rpm | 585N.m | 160kg | 23400N | 2.10 |
| SAF87Y132M4 | 15.64 | 5.5KW | 93.0rpm | 525N.m | 160kg | 22900N | 2.40 |
| SAF87Y132M4 | 14.06 | 5.5KW | 103rpm | 475N.m | 160kg | 22400N | 2.60 |
| SAF87Y132M4 | 12.21 | 5.5KW | 119rpm | 410N.m | 160kg | 21700N | 3.00 |
| SAF87Y132M4 | 10.93 | 5.5KW | 133rpm | 370N.m | 160kg | 21100N | 3.30 |
SAF87Y160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF87Y160M4 | 27.28 | 11KW | 54.0rpm | 1750N.m | 215kg | 23600N | 0.90 |
| SAF87Y160M4 | 24.43 | 11KW | 60.0rpm | 1570N.m | 215kg | 23300N | 1.00 |
| SAF87Y160M4 | 20.27 | 11KW | 73.0rpm | 1310N.m | 215kg | 22700N | 1.20 |
| SAF87Y160M4 | 19.70 | 11KW | 75.0rpm | 1300N.m | 215kg | 20300N | 0.95 |
| SAF87Y160M4 | 17.49 | 11KW | 84.0rpm | 1160N.m | 215kg | 20200N | 1.05 |
| SAF87Y160M4 | 15.64 | 11KW | 94.0rpm | 1040N.m | 215kg | 20000N | 1.20 |
| SAF87Y160M4 | 14.06 | 11KW | 105rpm | 930N.m | 215kg | 19700N | 1.30 |
| SAF87Y160M4 | 12.21 | 11KW | 121rpm | 810N.m | 215kg | 19400N | 1.50 |
| SAF87Y160M4 | 10.93 | 11KW | 135rpm | 730N.m | 215kg | 19100N | 1.70 |
| SAF87Y160M4 | 9.07 | 11KW | 163rpm | 605N.m | 215kg | 18500N | 1.85 |
| SAF87Y160M4 | 7.88 | 11KW | 187rpm | 530N.m | 215kg | 18000N | 1.90 |
Saf 87 gear-down box electric unitType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

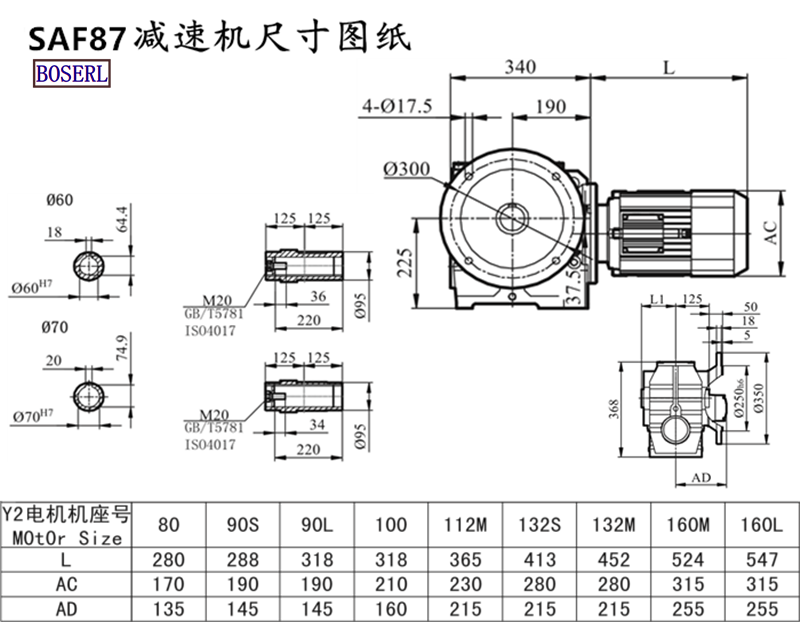

Saf 87 gear-down box electric unitInstall size drawings
Saf 87 gear-down box electric unitProduction plant display: three days' appointment for the factory
Gearbox motorPresentation of application cases:
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: saf87 gear-reducing tank saf87y132m4 saf87y160m4 saf87 gear-reducing container saf87 gear-reducing box saf87 gear-reducing unit saf 87 gear-retarder
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SAF87齿轮减速箱电机样本 |
|
| SAF87齿轮减速箱电机三维图纸 |
|
