KA127R87DR160M4Detailed Information
Keyword: how does 11kw power fit a straight-angle hollow axle decelerator _ ka127r87dr160m4_ka127r87dve132m4
KA127R87DR160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R87DR160M4 | 213 | 11KW | 6.90r/min | 14000N.m | 558kg | 77900N | 0.95 |
| KA127R87DR160M4 | 200 | 11KW | 7.40r/min | 13300N.m | 558kg | 79000N | 0.90 |
| KA127R87DR160M4 | 166 | 11KW | 8.90r/min | 11000N.m | 558kg | 80200N | 1.10 |
| KA127R87DR160M4 | 147 | 11KW | 10.0r/min | 9760N.m | 558kg | 80800N | 1.25 |
Ka127r87dve132m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R87DVE132M4 | 418 | 5.5KW | 3.50r/min | 14000N.m | 503kg | 77900N | 0.95 |
| KA127R87DVE132M4 | 367 | 5.5KW | 4.00r/min | 12200N.m | 503kg | 79600N | 1.05 |
| KA127R87DVE132M4 | 330 | 5.5KW | 4.40r/min | 10900N.m | 503kg | 80200N | 1.20 |
| KA127R87DVE132M4 | 287 | 5.5KW | 5.10r/min | 9480N.m | 503kg | 80900N | 1.35 |
| KA127R87DVE132M4 | 253 | 5.5KW | 5.70r/min | 8380N.m | 503kg | 81300N | 1.55 |
| KA127R87DVE132M4 | 213 | 5.5KW | 6.80r/min | 7040N.m | 503kg | 81800N | 1.85 |
| KA127R87DVE132M4 | 200 | 5.5KW | 7.30r/min | 6710N.m | 503kg | 81900N | 1.80 |
| KA127R87DVE132M4 | 166 | 5.5KW | 8.80r/min | 5550N.m | 503kg | 82200N | 2.20 |
| KA127R87DVE132M4 | 147 | 5.5KW | 9.90r/min | 4900N.m | 503kg | 82300N | 2.40 |
KA127R87DR160M4Speeding machine type:
K127r87dr160m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka127 br87dr160m4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv127 br87dr160m4 foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh127 br87dr160m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf127r87dr160m4b5 installation of tilt gears - umbrella gear reduction power
Kaf127 r87dr160m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf127r87dr160m4b5 franco-axis installation of tilt gears - umbrella gear-reducing power
Khf127r87dr160m4b5 french axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka127r87dr160m4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv127r87dr160m4 sky axes installation of tilt gear - umbrella gear deviation engine
Kh127r87dr160m4 empty axle locks slashing gears - umbrella gear deceleration power
The kt127r87dr160m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz127r87dr160m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r87dr160m4b14 flannel axles with tilt gears - an umbrella gear-reducing power plant
Dhz127 r87dr160m4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

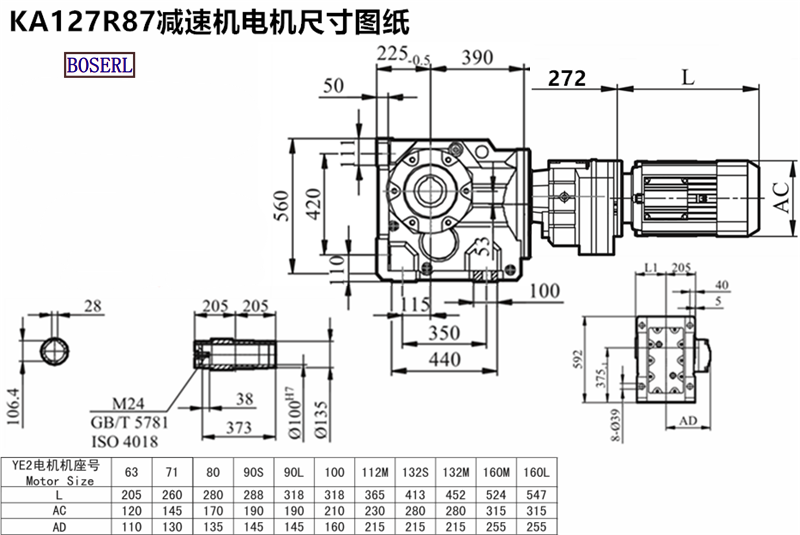

KA127R87DR160M4Induction Motor 3Ph motors installed size drawings
Ka127r87dr160m4 deviation power plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How does 11kw power fit a straight-angle hollow axle ka127r87dr160m4kka127r87dve132m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA127R87DR160M4减速机样本 |
|
| KA127R87DR160M4减速机三维图纸 |
|
