KA127R87DV160M4Detailed Information
Keyword: how the 11kw power is equipped with a straight-angle hollow axle reduction machine _ka127r87dv160m4_ka127r87drrn112m4
KA127R87DV160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R87DV160M4 | 213 | 11KW | 6.90r/min | 14000N.m | 558kg | 77900N | 0.95 |
| KA127R87DV160M4 | 200 | 11KW | 7.40r/min | 13300N.m | 558kg | 79000N | 0.90 |
| KA127R87DV160M4 | 166 | 11KW | 8.90r/min | 11000N.m | 558kg | 80200N | 1.10 |
| KA127R87DV160M4 | 147 | 11KW | 10.0r/min | 9760N.m | 558kg | 80800N | 1.25 |
Ka127r87drn112m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127R87DRN112M4 | 536 | 4KW | 2.70r/min | 12800N.m | 489kg | 79300N | 1.00 |
| KA127R87DRN112M4 | 473 | 4KW | 3.10r/min | 11200N.m | 489kg | 80100N | 1.15 |
| KA127R87DRN112M4 | 418 | 4KW | 3.50r/min | 10100N.m | 489kg | 80600N | 1.30 |
| KA127R87DRN112M4 | 367 | 4KW | 4.00r/min | 8830N.m | 489kg | 81200N | 1.45 |
| KA127R87DRN112M4 | 330 | 4KW | 4.40r/min | 7930N.m | 489kg | 81500N | 1.65 |
| KA127R87DRN112M4 | 287 | 4KW | 5.10r/min | 6820N.m | 489kg | 81800N | 1.90 |
| KA127R87DRN112M4 | 253 | 4KW | 5.80r/min | 6030N.m | 489kg | 82100N | 2.20 |
KA127R87DV160M4Speeding machine type:
K127r87dv160m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka127br87dv160m4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv127 br87dv160m4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh127 br87dv160m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r87dv160m4b5 installation of tilt gear - umbrella gear reduction power
Kaf127r87dv160m4b5 french aerocentric axles with tilt gears - an umbrella gear reduction power
Kvf127r87dv160m4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf127r87dv160m4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r87dv160m4 hollow axle tilt gears - umbrella gear reduction power
Kv127r87dv160m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh127r87dv160m4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Kt127r87dv160m4 tilt gears - umbrella gear reduction power
Kaz127r87dv160m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r87dv160m4b14 installation of tilt gears - umbrella gear reduction power
Dhz127r87dv160m4b14 french axial axle locks fitted with tilt gears - umbrella gear reduction power

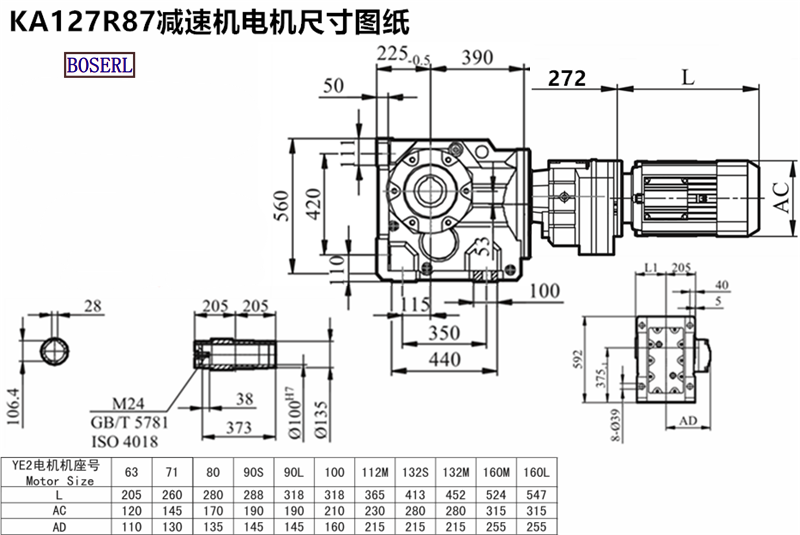

KA127R87DV160M4Induction Motor 3Ph motors installed size drawings
Ka127r87dv160m4 deviation electric power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
