KA127RF77-Y0.37KWDetailed Information
Keyword: how to fit 3kw power with a straight-angle pore decelerator _ka127rf77-y0. 37kw_ka127rf77-y1. 5kw
KA127RF77-Y0.37KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127RF77-Y0.37KW | 7482 | 0.37KW | 0.18r/min | 16500N.m | 426.5kg | 72700N | 0.80 |
| KA127RF77-Y0.37KW | 6565 | 0.37KW | 0.21r/min | 14500N.m | 426.5kg | 76900N | 0.90 |
| KA127RF77-Y0.37KW | 5804 | 0.37KW | 0.24r/min | 12600N.m | 426.5kg | 79400N | 1.05 |
| KA127RF77-Y0.37KW | 5027 | 0.37KW | 0.27r/min | 11000N.m | 426.5kg | 80200N | 1.20 |
| KA127RF77-Y0.37KW | 4423 | 0.37KW | 0.31r/min | 9610N.m | 426.5kg | 80800N | 1.35 |
| KA127RF77-Y0.37KW | 3889 | 0.37KW | 0.35r/min | 8410N.m | 426.5kg | 81300N | 1.55 |
| KA127RF77-Y0.37KW | 3311 | 0.37KW | 0.42r/min | 7080N.m | 426.5kg | 81800N | 1.85 |
| KA127RF77-Y0.37KW | 1926 | 0.37KW | 0.72r/min | 4280N.m | 426.5kg | 82400N | 3.00 |
| KA127RF77-Y0.37KW | 1757 | 0.37KW | 0.79r/min | 3900N.m | 426.5kg | 82500N | 3.30 |
| KA127RF77-Y0.37KW | 1541 | 0.37KW | 0.90r/min | 3390N.m | 426.5kg | 82600N | 3.80 |
KA127RF77-Y1.5KWSpeed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA127RF77-Y1.5KW | 1757 | 1.5KW | 0.81r/min | 16100N.m | 439kg | 73600N | 0.80 |
| KA127RF77-Y1.5KW | 1541 | 1.5KW | 0.93r/min | 14100N.m | 439kg | 77700N | 0.90 |
| KA127RF77-Y1.5KW | 1342 | 1.5KW | 1.10r/min | 12300N.m | 439kg | 79600N | 1.05 |
| KA127RF77-Y1.5KW | 1177 | 1.5KW | 1.20r/min | 10700N.m | 439kg | 80300N | 1.20 |
| KA127RF77-Y1.5KW | 1025 | 1.5KW | 1.40r/min | 9410N.m | 439kg | 80900N | 1.40 |
| KA127RF77-Y1.5KW | 899 | 1.5KW | 1.60r/min | 8230N.m | 439kg | 81400N | 1.60 |
| KA127RF77-Y1.5KW | 790 | 1.5KW | 1.80r/min | 7130N.m | 439kg | 81700N | 1.80 |
| KA127RF77-Y1.5KW | 704 | 1.5KW | 2.00r/min | 6420N.m | 439kg | 81900N | 2.00 |
| KA127RF77-Y1.5KW | 610 | 1.5KW | 2.30r/min | 5540N.m | 439kg | 82200N | 2.40 |
| KA127RF77-Y1.5KW | 549 | 1.5KW | 2.60r/min | 5000N.m | 439kg | 82300N | 2.60 |
| KA127RF77-Y1.5KW | 477 | 1.5KW | 3.00r/min | 4300N.m | 439kg | 82400N | 3.00 |
| KA127RF77-Y1.5KW | 418 | 1.5KW | 3.40r/min | 3810N.m | 439kg | 82500N | 3.40 |
KA127RF77-Y0.37KWSpeeding machine type:
K127rf77-y0. 37kw bottom foot installation of tilt gears - umbrella gear deviation engine
Ka127brf77-y0. 37kw bottom foot hollow axis fitted with tilt gears - umbrella gear decelerators
Kv127brf77-y0. 37kw bottom foot flow axes installation of tilt gears - umbrella gear deviation engine
Kh127brf77-y0. 37kw bottom foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf127rf77-y0. 37kwb5 installation of tilt gear - umbrella gear-reducing power
Kaf127rf77-y0. 37 kwb5 installation of tilt gear - umbrella gear-reducing power
Frf 127rf77-y0. 37 kwb5 installation of tilt gears - umbrella gear-reducing power
Khf127rf77-y0. 37 kwb5 franium axle lockboard installation of tilt gears - umbrella gear deviation engine
Ka127rf77-y0. 37kw hollow axle tilt gears - an umbrella gear reduction power
Kv127rf77-y0. 37kw spaced axles with tilt gears - umbrella gear reduction power
Kh127rf77-y0. 37kw hollow axle locks the slasher gears - an umbrella gear reduction power
Installation of tilt gears on the kt127rf77-y0. 37kw hollow axle - umbrella gear reduction power
Kaz127rf77-y0. 37kwb14 installation of tilt gear - umbrella gear reduction power
Installation of an oscillating gear - an umbrella gear-reducing power plant on the flannel axle kvz127rf77-y0. 37 kwb14
Dhz127rf77-y0. 37kwb14 french axle locks fitted with tilt gears - umbrella gear-reducing power

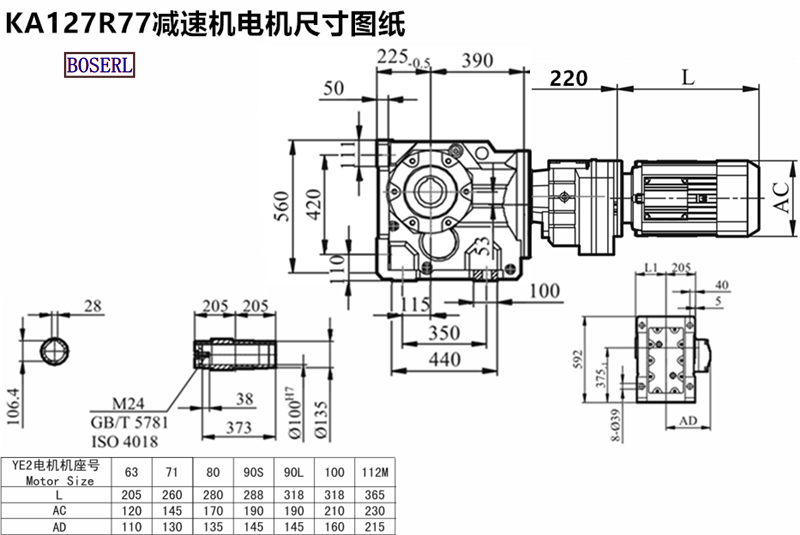

KA127RF77-Y0.37KWInduction Motor 3Ph motors installed size drawings
Ka127rf77-y0. 37kw power-reducing plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How 3kw power is fitted with a perforated mid-angle speed reduction machine ka127rf77-y0. 37kw a127rf77-y1. 5kw
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA127RF77Y0.37KW减速机样本 |
|
| KA127RF77Y0.37KW减速机三维图纸 |
|
