KA157R97DR90S4Detailed Information
Keyword: how much of a 160kw power can be used as a propeller? _ka157r97dr90s4_ka157r97dve80k4
KA157R97DR90S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DR90S4 | 3516 | 1.1KW | 0.40r/min | 22200N.m | 731kg | 109700N | 0.80 |
| KA157R97DR90S4 | 3051 | 1.1KW | 0.47r/min | 19800N.m | 731kg | 111200N | 0.90 |
| KA157R97DR90S4 | 2610 | 1.1KW | 0.54r/min | 16300N.m | 731kg | 113000N | 1.10 |
| KA157R97DR90S4 | 2322 | 1.1KW | 0.61r/min | 14500N.m | 731kg | 113700N | 1.25 |
| KA157R97DR90S4 | 1659 | 1.1KW | 0.86r/min | 10800N.m | 731kg | 115000N | 1.65 |
| KA157R97DR90S4 | 1365 | 1.1KW | 1.00r/min | 8840N.m | 731kg | 115600N | 2.00 |
| KA157R97DR90S4 | 1229 | 1.1KW | 1.20r/min | 7880N.m | 731kg | 115800N | 2.30 |
| KA157R97DR90S4 | 1093 | 1.1KW | 1.30r/min | 7010N.m | 731kg | 116000N | 2.60 |
| KA157R97DR90S4 | 942 | 1.1KW | 1.50r/min | 6040N.m | 731kg | 116200N | 3.00 |
| KA157R97DR90S4 | 854 | 1.1KW | 1.70r/min | 5420N.m | 731kg | 116300N | 3.30 |
Ka157r97dve80k4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA157R97DVE80K4 | 6881 | 0.55KW | 0.20r/min | 21900N.m | 726kg | 110000N | 0.80 |
| KA157R97DVE80K4 | 5931 | 0.55KW | 0.23r/min | 18800N.m | 726kg | 111700N | 0.95 |
| KA157R97DVE80K4 | 3979 | 0.55KW | 0.35r/min | 12600N.m | 726kg | 114500N | 1.40 |
| KA157R97DVE80K4 | 3051 | 0.55KW | 0.45r/min | 9710N.m | 726kg | 115400N | 1.85 |
KA157R97DR90S4Speeding machine type:
K157r97dr90s4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka157br97dr90s4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv157 br97dr90s4 foot larvae axis installation of tilt gears - umbrella gear reduction power
Kh157 br97dr90s 4-foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 157r97dr90s4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r97dr90s4b5 french aerocentric axle is equipped with tilt gears - umbrella gear-reducing power
Frf157r97dr90s4b5 installation of tilt gear - umbrella gear-reducing power
Khf157r97dr90s4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka157r97dr90s4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv157r97dr90s4 spaced axles with tilt gears - umbrella gear reduction power
Kh157r97dr90s4 empty axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on kt157r97dr90s4 hollow axle - umbrella gear reduction power
Kaz157r97dr90s4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dr90s4b14 flannel axles installed with tilt gears - umbrella gear reduction power
Dhz157r97dr90s4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

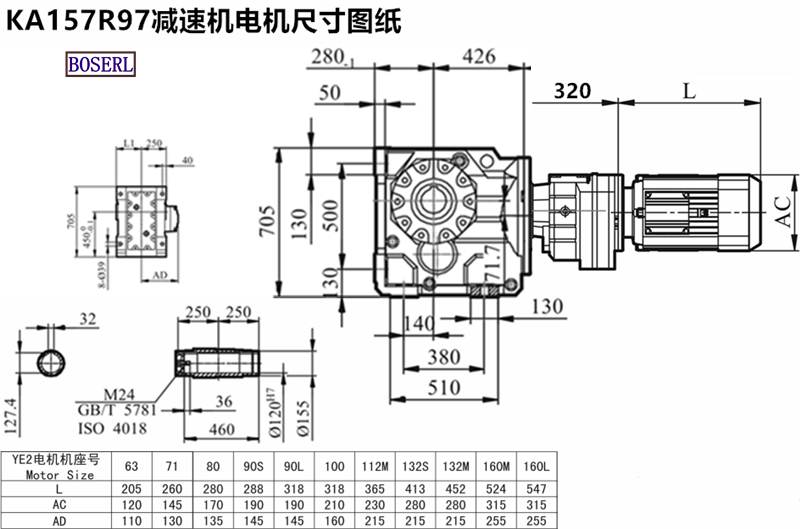

KA157R97DR90S4Induction Motor 3Ph motors installed size drawings
Ka157r97dr90s4 deviation power plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: The size of the 160kw electric power with a screwdriver gear brake ka157r97dr90s4kka157r97dve80k4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KA157R97DR90S4减速机样本 |
|
| KA157R97DR90S4减速机三维图纸 |
|
