KA167BR107DM225M4Detailed Information
Keyword: 1 kw for electric cone cortex gear decelerator_ka167br107dm225m4_ka167br107drrs180m4
KA167BR107DM225M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DM225M4 | 135 | 45KW | 11.0r/min | 36900N.m | 1,503kg | 150000N | 0.85 |
| KA167BR107DM225M4 | 118 | 45KW | 12.0r/min | 32200N.m | 1,503kg | 150000N | 1.00 |
KA167BR107DRS180M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA167BR107DRS180M4 | 318 | 18.5KW | 4.60r/min | 35800N.m | 1,340kg | 150000N | 0.90 |
| KA167BR107DRS180M4 | 278 | 18.5KW | 5.30r/min | 31200N.m | 1,340kg | 150000N | 1.00 |
| KA167BR107DRS180M4 | 244 | 18.5KW | 6.00r/min | 27000N.m | 1,340kg | 150000N | 1.20 |
| KA167BR107DRS180M4 | 213 | 18.5KW | 6.90r/min | 23600N.m | 1,340kg | 150000N | 1.35 |
| KA167BR107DRS180M4 | 206 | 18.5KW | 7.10r/min | 23000N.m | 1,340kg | 150000N | 1.40 |
| KA167BR107DRS180M4 | 180 | 18.5KW | 8.10r/min | 19900N.m | 1,340kg | 150000N | 1.60 |
| KA167BR107DRS180M4 | 160 | 18.5KW | 9.20r/min | 17900N.m | 1,340kg | 150000N | 1.80 |
| KA167BR107DRS180M4 | 135 | 18.5KW | 11.0r/min | 15100N.m | 1,340kg | 150000N | 2.10 |
| KA167BR107DRS180M4 | 118 | 18.5KW | 12.0r/min | 13200N.m | 1,340kg | 150000N | 2.40 |
KA167BR107DM225M4Speeding machine type:
K167r107dm225m4 bottom foot with tilt gears - umbrella gear reduction power
Ka167br107dm225m4 foot hollow axis with tilt gear - umbrella gear-reducing power
Kv167r107dm225m4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh167r107dm225m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf167r107dm225m4b5 is equipped with tilt gears - umbrella gear reduction power
Kaf167r107dm225m4b5 installation of tilt gears - umbrella gear reduction power
Frf167r107dm225m4b5 installation of tilt gears - umbrella gear reduction power
Khf167r107dm225m4b5 franium axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka167r107dm225m4 hollow axle tilt gears - an umbrella gear-reducing motor
Kv167r107dm225m4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh167r107dm225m4 hollow axle locks the slashing gears - the umbrella gear reduction power
The kt167r107dm225m4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz167r107dm225m4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors in the franberry axle
Dhz167r107dm225m4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

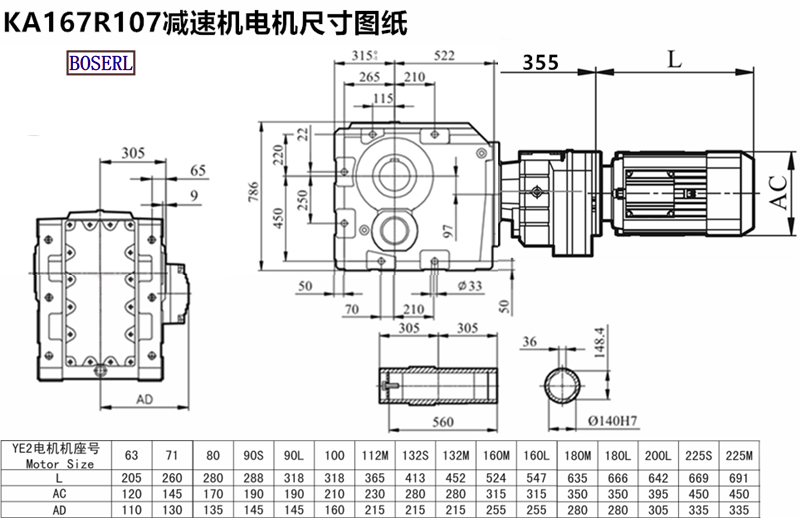

KA167BR107DM225M4Induction Motor 3Ph motors installed size drawings
Ka167br107dm225m4 deviation power plantThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
