KA37DVE80S4Detailed Information

KA37DVE80S4
prevnext

KA37DVE80S4

TEL：Email:[email protected]
  1. 详细信息

Keyword: 0. 12 kw power motor decelerator_ka37dve80s4_ka37dre80s4_0. 12kw retardator_0. 12kw retardator_0. 12kw retardator_0. 12kw power motor decelerator_0. 12kw power decelerator

KA37DVE80S4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KA37DVE80S444.460.75KW32rpm225N.m22kg4170N0.9
KA37DVE80S437.970.75KW37rpm193N.m22kg4150N1.05
KA37DVE80S435.570.75KW40rpm181N.m22kg4130N1.1
KA37DVE80S429.960.75KW47rpm152N.m22kg4070N1.3
KA37DVE80S428.830.75KW49rpm146N.m22kg4050N1.35
KA37DVE80S424.990.75KW56rpm127N.m22kg3980N1.6
KA37DVE80S423.360.75KW60rpm119N.m22kg3940N1.65
KA37DVE80S420.190.75KW70rpm102N.m22kg3850N1.8
KA37DVE80S417.150.75KW82rpm87N.m22kg3740N2.1
KA37DVE80S415.310.75KW92rpm78N.m22kg3650N2.2
KA37DVE80S413.080.75KW108rpm66N.m22kg3530N2.5
KA37DVE80S412.140.75KW116rpm62N.m22kg3480N2.6
KA37DVE80S410.490.75KW134rpm53N.m22kg3360N3
KA37DVE80S48.910.75KW158rpm45N.m22kg3230N3.5
KA37DVE80S47.96
0.75KW177rpm40N.m22kg3140N3.8
KA37DVE80S46.8
0.75KW207rpm34N.m22kg3010N4.4
KA37DVE80S46.370.75KW221rpm32N.m22kg2960N4.5
KA37DVE80S45.360.75KW263rpm27N.m22kg2830N5.2
KA37DVE80S43.980.75KW354rpm20N.m22kg2600N6.2

KA37DRE80S4Speed-down electrical parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KA37DRE80S444.460.75KW32rpm225N.m22kg4170N0.9
KA37DRE80S437.970.75KW37rpm193N.m22kg4150N1.05
KA37DRE80S435.570.75KW40rpm181N.m22kg4130N1.1
KA37DRE80S429.960.75KW47rpm152N.m22kg4070N1.3
KA37DRE80S428.830.75KW49rpm146N.m22kg4050N1.35
KA37DRE80S424.990.75KW56rpm127N.m22kg3980N1.6
KA37DRE80S423.360.75KW60rpm119N.m22kg3940N1.65
KA37DRE80S420.190.75KW70rpm102N.m22kg3850N1.8
KA37DRE80S417.150.75KW82rpm87N.m22kg3740N2.1
KA37DRE80S415.310.75KW92rpm78N.m22kg3650N2.2
KA37DRE80S413.080.75KW108rpm66N.m22kg3530N2.5
KA37DRE80S412.140.75KW116rpm62N.m22kg3480N2.6
KA37DRE80S410.490.75KW134rpm53N.m22kg3360N3
KA37DRE80S48.910.75KW158rpm45N.m22kg3230N3.5
KA37DRE80S47.96
0.75KW177rpm40N.m22kg3140N3.8
KA37DRE80S46.8
0.75KW207rpm34N.m22kg3010N4.4
KA37DRE80S46.370.75KW221rpm32N.m22kg2960N4.5
KA37DRE80S45.360.75KW263rpm27N.m22kg2830N5.2
KA37DRE80S43.980.75KW354rpm20N.m22kg2600N6.2

KA37DVE80S4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

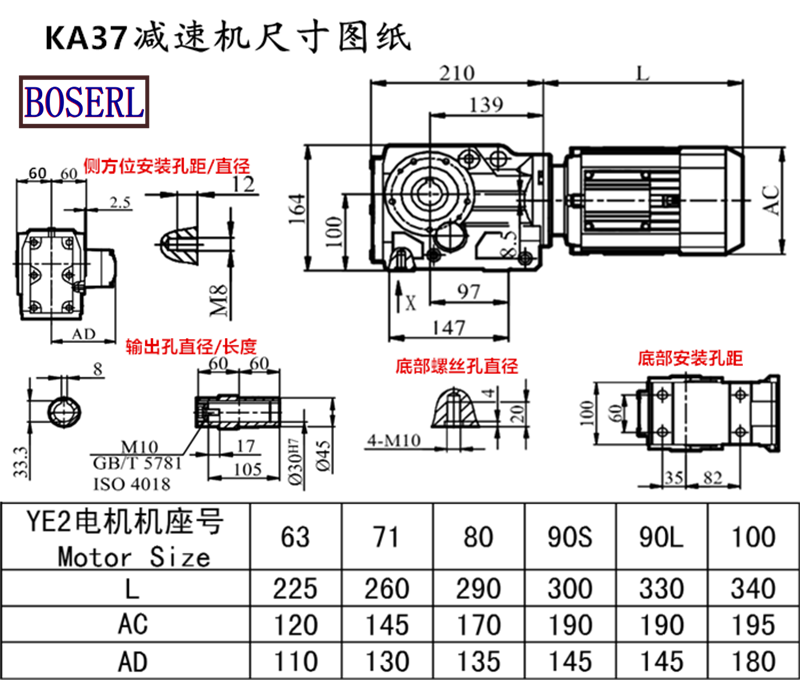

KA37DVE80S4Induction Motor 3Ph motors installed size drawings



KA37DVE80S4At thereducing plant: three days in advance

Through-hole shaft reducerPresentation of application cases:

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

 KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
