KAF127R77DT63L4Detailed Information
Keyword: 2. 2kw's what spirulse gear debrigger_kaf127r77dt63l4_kaf127r77dr100l4
KAF127R77DT63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DT63L4 | 14975 | 0.18KW | 0.09r/min | 15700N.m | 422kg | 74400N | 0.80 |
| KAF127R77DT63L4 | 12440 | 0.18KW | 0.11r/min | 13100N.m | 422kg | 79100N | 1 .00 |
| KAF127R77DT63L4 | 10915 | 0.18KW | 0.12r/min | 11500N.m | 422kg | 80000N | 1.15 |
| KAF127R77DT63L4 | 9819 | 0.18KW | 0.13r/min | 10300N.m | 422kg | 80500N | 1.25 |
| KAF127R77DT63L4 | 8443 | 0.18KW | 0.16r/min | 8870N.m | 422kg | 81100N | 1.45 |
| KAF127R77DT63L4 | 7482 | 0.18KW | 0.18r/min | 7880N.m | 422kg | 81500N | 1.65 |
| KAF127R77DT63L4 | 6565 | 0.18KW | 0.20r/min | 6910N.m | 422kg | 81800N | 1.90 |
| KAF127R77DT63L4 | 5804 | 0.18KW | 0.23r/min | 5880N.m | 422kg | 82100N | 2.20 |
| KAF127R77DT63L4 | 5027 | 0.18KW | 0.26r/min | 5210N.m | 422kg | 82300N | 2.50 |
| KAF127R77DT63L4 | 4423 | 0.18KW | 0.30r/min | 4480N.m | 422kg | 82400N | 2.90 |
| KAF127R77DT63L4 | 3889 | 0.18KW | 0.34r/min | 3900N.m | 422kg | 82500N | 3.30 |
| KAF127R77DT63L4 | 3311 | 0.18KW | 0.40r/min | 3240N.m | 422kg | 82600N | 4.00 |
Kaf127r77dre100l4 motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DRE100L4 | 790 | 3KW | 1.80r/min | 14200N.m | 451kg | 77400N | 0.90 |
| KAF127R77DRE100L4 | 704 | 3KW | 2.10r/min | 12700N.m | 451kg | 79300N | 1.00 |
| KAF127R77DRE100L4 | 610 | 3KW | 2.40r/min | 11000N.m | 451kg | 80200N | 1.20 |
| KAF127R77DRE100L4 | 549 | 3KW | 2.60r/min | 9960N.m | 451kg | 80700N | 1.30 |
| KAF127R77DRE100L4 | 477 | 3KW | 3.00r/min | 8620N.m | 451kg | 81200N | 1.50 |
| KAF127R77DRE100L4 | 418 | 3KW | 3.50r/min | 7590N.m | 451kg | 81600N | 1.70 |
KAF127R77DT63L4Speeding machine type:
K127r77dt63l4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka127br77dt63l4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv127 br77dt63l4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing power
Kh127 br77dt63l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dt63l4b5 installation of tilt gears - umbrella gear reduction power
Kaf127r77dt63l4b5farland aerocentric axis installed with tilt gears - umbrella gear reduction power
Kvf127r77dt63l4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf127r77dt63l4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dt63l4 hollow axial tilt gears - an umbrella gear reduction power
The kv127r77dt63l4 spaced axle is equipped with tilt gears - an umbrella gear decelerator
Kh127r77dt63l4 empty axle locks slashing gears - umbrella gear deceleration power
The kt127r77dt63l4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz127r77dt63l4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dt63l4b14 installation of tilt gears - umbrella gear deviation electric
Dhz127r77dt63l4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

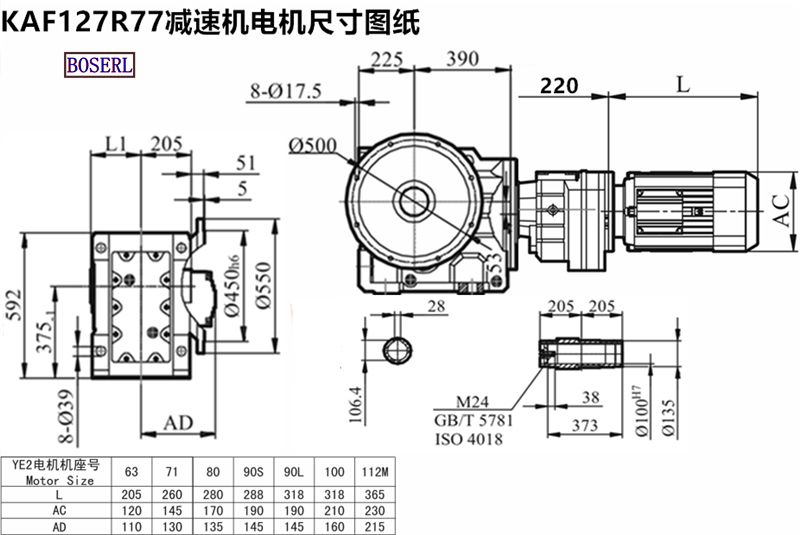

KAF127R77DT63L4Induction Motor 3Ph motors installed size drawings
Kaf127r77dt63l4 power-reducing plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 2. 2kw. what kind of propeller gear-reducing machine kaf127r77dt63l4 kaf127r77dre100l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF127R77DT63L4减速机样本 |
|
| KAF127R77DT63L4减速机三维图纸 |
|
