KF67R37DV80N4Detailed Information
Keywords: 1. 8 kw for an electrical umbrella gear-retarder_kf67r37dv80n4_kf67r37drrn71s4
KF67R37DV80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DV80N4 | 279 | 0.55KW | 5.00r/min | 950N.m | 56.5kg | 7650N | 0.85 |
| KF67R37DV80N4 | 246 | 0.55KW | 5.60r/min | 840N.m | 56.5kg | 10100N | 0.95 |
| KF67R37DV80N4 | 217 | 0.55KW | 6.40r/min | 745N.m | 56.5kg | 10900N | 1.10 |
| KF67R37DV80N4 | 191 | 0.55KW | 7.20r/min | 655N.m | 56.5kg | 11600N | 1.25 |
Kf67r37drn71s4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DRN71S4 | 613 | 0.25KW | 2.10r/min | 970N.m | 51.5kg | 5680N | 0.85 |
| KF67R37DRN71S4 | 542 | 0.25KW | 2.40r/min | 860N.m | 51.5kg | 9920N | 0.95 |
| KF67R37DRN71S4 | 471 | 0.25KW | 2.80r/min | 775N.m | 51.5kg | 10700N | 1.05 |
| KF67R37DRN71S4 | 420 | 0.25KW | 3.10r/min | 665N.m | 51.5kg | 11500N | 1.25 |
| KF67R37DRN71S4 | 361 | 0.25KW | 3.60r/min | 590N.m | 51.5kg | 11900N | 1.4 |
| KF67R37DRN71S4 | 323 | 0.25KW | 4.00r/min | 520N.m | 51.5kg | 12300N | 1.55 |
| KF67R37DRN71S4 | 279 | 0.25KW | 4.70r/min | 440N.m | 51.5kg | 12600N | 1.85 |
| KF67R37DRN71S4 | 246 | 0.25KW | 5.30r/min | 390N.m | 51.5kg | 12800N | 2.10 |
| KF67R37DRN71S4 | 217 | 0.25KW | 6.00r/min | 345N.m | 51.5kg | 13000N | 2.40 |
KF67R37DV80N4Speeding machine type:
K67r37dv80n4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka67br37dv80n4 foot hollow axis installed with tilt gears - umbrella gear reduction power
The kv67br37dv80n4 foot larvae axis is equipped with tilt gears - umbrella gear-reducing power
Kh67br37dv80n4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf67r37dv80n4b5 installation of tilt gears - umbrella gear reduction power
Kaf67r37dv80n4b5farland aerocentric axis is equipped with tilt gears - an umbrella gear reduction power
Kvf67r37dv80n4b5franco-axis fitted with tilt gears - umbrella gear-reducing power
Khf67r37dv80n4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka67r37dv80n4 hollow axle tilt gears - an umbrella gear reduction power
Kv67r37dv80n4 hollow gears - umbrella gear deviation engine
Kh67r37dv80n4 sky axe locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on the kt67r37dv80n4 hollow axle - umbrella gear reduction power
Kaz67r37dv80n4b14 installation of tilt gear - umbrella gear reduction power
Kvz67r37dv80n4b14francian cardiac axe installation of tilt gears - umbrella gear deviation engine
Dhz67r37dv80n4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

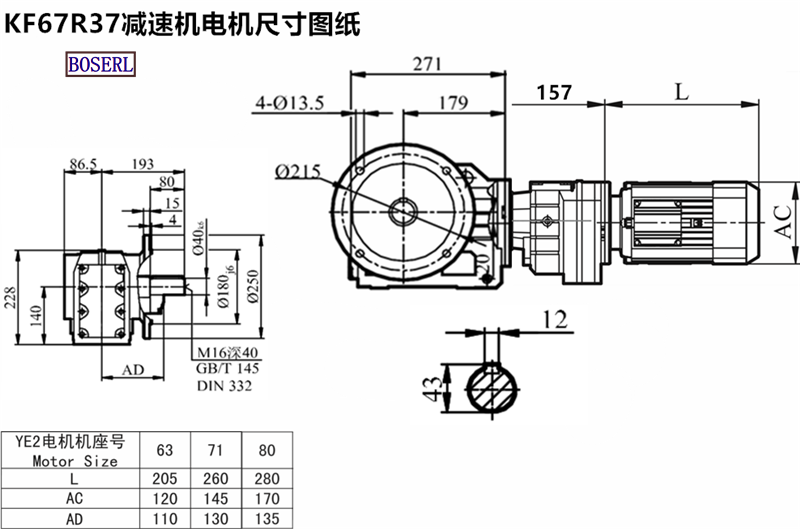

KF67R37DV80N4Induction Motor 3Ph motors installed size drawings
Kf67r37dv80n4 deviation electric power plant, three days' appointmentMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
