KF67R37DVE71M4Detailed Information
Keyword: 5kw for an electrical umbrella gear-retarder_kf67r37dve71m4_kf67r37dt80m4
KF67R37DVE71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DVE71M4 | 420 | 0.37KW | 3.30r/min | 940N.m | 52kg | 8130N | 0.85 |
| KF67R37DVE71M4 | 361 | 0.37KW | 3.80r/min | 830N.m | 52kg | 10200N | 1.00 |
| KF67R37DVE71M4 | 323 | 0.37KW | 4.30r/min | 740N.m | 52kg | 10900N | 1.10 |
| KF67R37DVE71M4 | 279 | 0.37KW | 5.00r/min | 630N.m | 52kg | 11700N | 1.30 |
| KF67R37DVE71M4 | 246 | 0.37KW | 5.60r/min | 555N.m | 52kg | 12100N | 1.50 |
| KF67R37DVE71M4 | 191 | 0.37KW | 7.20r/min | 430N.m | 52kg | 12700N | 1.90 |
| KF67R37DVE71M4 | 166 | 0.37KW | 8.30r/min | 370N.m | 52kg | 12900N | 2.20 |
| KF67R37DVE71M4 | 144 | 0.37KW | 9.60r/min | 325N.m | 52kg | 13000N | 2.50 |
| KF67R37DVE71M4 | 122 | 0.37KW | 11.0r/min | 275N.m | 52kg | 13000N | 2.90 |
Kf67r37dt80m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DT80M4 | 279 | 0.55KW | 5.00r/min | 950N.m | 56.5kg | 7650N | 0.85 |
| KF67R37DT80M4 | 246 | 0.55KW | 5.60r/min | 840N.m | 56.5kg | 10100N | 0.95 |
| KF67R37DT80M4 | 217 | 0.55KW | 6.40r/min | 745N.m | 56.5kg | 10900N | 1.10 |
| KF67R37DT80M4 | 191 | 0.55KW | 7.20r/min | 655N.m | 56.5kg | 11600N | 1.25 |
KF67R37DVE71M4Speeding machine type:
K67r37dve71m4 bottom foot is equipped with tilt gears - umbrella gear reduction power
Ka67br37dve71m4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv67br37dve71m4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
Kh67br37dve71m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf67r37dve71m4b5 installation of tilt gear - umbrella gear-reducing power
Kaf67r37dve71m4b5farland aerocentric axis installed with tilt gears - umbrella gear-reducing power
Kvf67r37dve71m4b5franco-axis fitted with tilt gears - umbrella gear-reducing power
Khf67r37dve71m4b5farland axle locks with tilt gears - umbrella gear-reducing power
Ka67r37dve71m4 hollow axial tilt gears - an umbrella gear deceleration power
Kv67r37dve71m4 space cores installed with tilt gears - umbrella gear reduction power
Kh67r37dve71m4 empty axle locks the slant gears - the umbrella gear-reducing motor
The kt67r37dve71m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz67r37dve71m4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gear - umbrella gear deviation electrics on the franze axes
Khz67r37dve71m4b14farland axle locks with tilt gears - an umbrella gear-reducing power plant

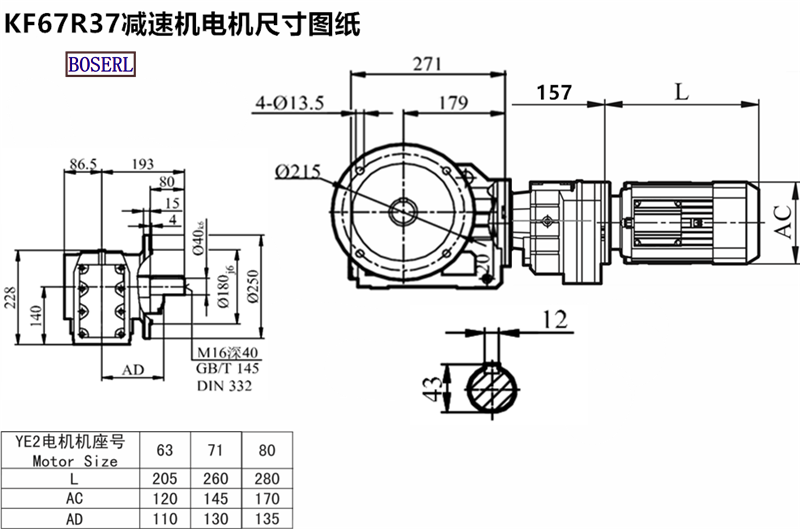

KF67R37DVE71M4Induction Motor 3Ph motors installed size drawings
Kf67r37dve71m4 deviation electric power plantMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
